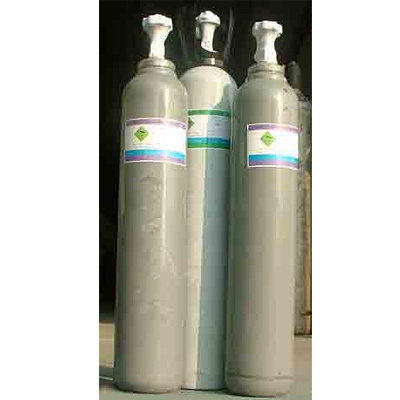

氖气
    产品说明

    A colorless,non-flammable,high pressure gas.(一种无色,不燃,高压气体)

    Formula(分子式):              Ne

    Molecular weight(分子量):         20.18

    Boiling point(沸点):            -246.1℃,-410.98°F;

    Melting point(融点):            -248.6℃,-415.48°F.

    Specific Volume(比容):           1.21m3/kg(21.1℃,101.325KPa)

                          19.4ft3/lb(70°F,14.696psia)

    UN Number(UN号码):             UN1065

    DOT Classification(DOT类别):        2.2(Non flammable Gas)(不燃性气体)

    DOT Label(DOT标签):            NON-FLAMMABLE GAS(不燃性气体)

    Cylinder Connection(钢瓶接口):       CGA/DISS/JIS---580/718/W22-14R

    Grade(级别)                 5N

    Purity(纯度)                99.9995%

    Guaranteed Specification(保证规格)

    Impurity(非组分)

    Specification(标准)

    Oxygen(氧)

    ≤0.5 ppmv

    Nitrogen(氮)

    ≤1 ppmv

    Carbon Dioxide(二氧化碳)

    ≤0.1 ppmv

    Carbon Monoxide(一氧化碳)

    ≤0.1 ppmv

    Methane(THC)(甲烷,总碳)

    ≤0.1 ppmv

    Water(水)

    ≤1 ppmv



    Cylinder Size(liter)钢瓶体积(升)

    Content(Kg,lbs)气含量(公斤,磅)

    43.8

    5,177
