MRT Series

Product Description

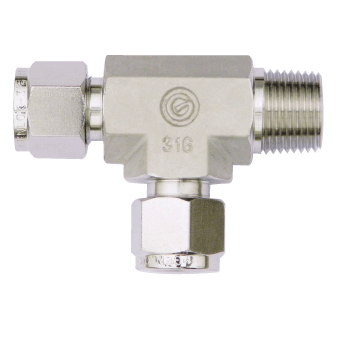

• GENLOK to Male NPT Thread

Model parameters:

T (Tube O.D.)	P (NPT Male Pipe Size)	Basic Ordering Number	Ax	B	C	D	E	F (Hex Flat)	G (Hex Flat)	Hx	Hy
Fractional ( in )	in		in	in	in	in	in	in	in	in	in
1/8	1/8	SS-MRT-TF2-NT2	0.93	0.38	0.60	0.50	0.09	7/16	7/16	0.67	0.70
1/8	1/4	SS-MRT-TF2-NT4	0.97	0.56	0.60	0.50	0.09	1/2	7/16	0.71	0.92
3/16*	1/8	SS-MRT-TF3-NT2	0.96	0.38	0.63	0.54	0.12	7/16	1/2	0.70	0.70
1/4	1/8	SS-MRT-TF4-NT2	1.06	0.38	0.70	0.60	0.19	1/2	9/16	0.77	0.74
1/4	1/4	SS-MRT-TF4-NT4	1.06	0.56	0.70	0.60	0.19	1/2	9/16	0.77	0.92
5/16*	1/8	SS-MRT-TF5-NT2	1.17	0.38	0.73	0.64	0.19	5/8	5/8	0.88	0.82
3/8	1/4	SS-MRT-TF6-NT4	1.20	0.56	0.76	0.66	0.28	5/8	11/16	0.91	1.00
3/8	3/8	SS-MRT-TF6-NT6	1.31	0.56	0.76	0.66	0.28	5/8	11/16	1.02	1.00
1/2	3/8	SS-MRT-TF8-NT6	1.42	0.56	0.86	0.90	0.38	13/16	7/8	1.02	1.11
1/2	1/2	SS-MRT-TF8-NT8	1.42	0.75	0.86	0.90	0.41	13/16	7/8	1.02	1.30
5/8*	1/2	SS-MRT-TF10-NT8	1.50	0.75	0.86	0.96	0.47	15/16	1	1.10	1.38
3/4	3/4	SS-MRT-TF12-NT12	1.57	0.75	0.86	0.96	0.62	1-1/16	1-1/8	1.17	1.45
Metric ( mm )	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
6	1/8	SS-MRT-TF6M-NT2	27.0	9.70	17.7	15.3	4.8	12.7	14	19.6	18.8
6	1/4	SS-MRT-TF6M-NT4	27.0	14.2	17.7	15.3	4.8	16.0	14	19.6	23.4
8	1/8	SS-MRT-TF8M-NT2	29.9	9.70	18.6	16.2	4.8	16.0	16	22.4	20.8
8	1/4	SS-MRT-TF8M-NT4	29.9	14.2	18.6	16.2	6.4	16.0	16	22.4	25.4
10	1/4	SS-MRT-TF10M-NT4	33.5	14.2	19.5	17.2	7.1	20.5	19	25.9	28.2
12	1/4	SS-MRT-TF12M-NT4	36.0	14.2	22.0	22.8	7.1	20.5	22	25.9	28.2
12	3/8	SS-MRT-TF12M-NT6	36.0	14.2	22.0	22.8	9.5	20.5	22	25.9	28.2
12	1/2	SS-MRT-TF12M-NT8	36.0	19.0	22.0	22.8	9.5
