FEATURES
• Maximum operating pressure: 2500 psig
• Operating temperature from 50 Fº ~ 149Fº (10 C º ~ 65 C º)
• Unibody design
• Front-panel install serviceable
• Switchable flow paths
• Top-loaded design. In-line valve adjustment serviceable
• Bidirectional flow. Easily cleaned and purged
• 100% air leak rate tested
MATERIAL
• Body: 316 Stainless Steel
• Seal: PTFE
• Handle: ABS with brass insert
• Capsule seat packing: PTFE
Standard Production Test:

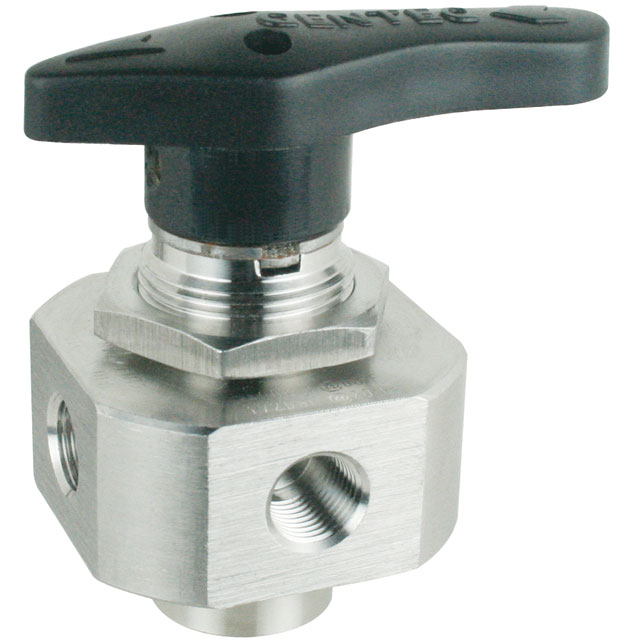

Every BV5 series ball valve is adjusted for factory testing at 1000 psig (68.9 bar) with air or at its maximum rated pressure if less than 1000 psig (68.9 bar).
