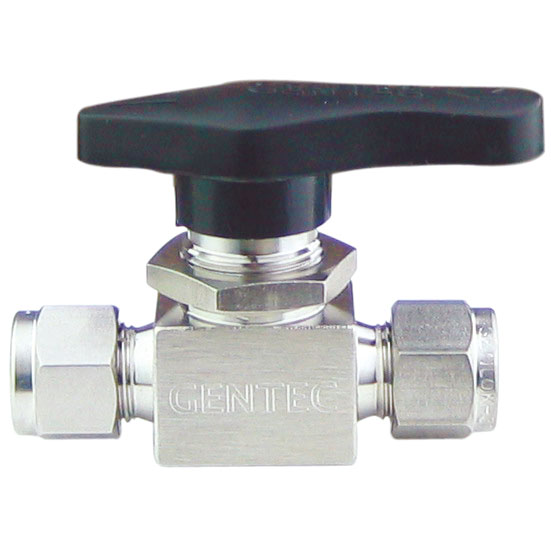

Features
- Pressure rating：3000 psig (207 bar)- BV15
2500 psig (172 bar)- BV13/ BV14/ BV16/ BV18
- Temperature rating: 50°F to 150°F (10°C to 65°C)
- Bi-directional flow.
- Encapsulated seat.
- Directional handle indicating on-off positions.
- Single-piece ball stem to eliminate backlash.
- One-piece body to eliminate multiple-seal points.
- Unique top-loaded capsule packing allows reliable switching.
- End connections include GENLOK, NPT and FSR types.
- Connections in sizes: 1/8”, 1/4”, 3/8”, 1/2” and 3/4”.
3mm, 6mm, 8mm, 10mm and 12mm.
- Straight pattern is the standard body style. Angle pattern is also available.
- Allow for panel mounting.
- For oxygen service, please select oxygen cleaning option.
- Every valve is factory tested at 1000 psig (29 bar) for leakage. Adjust packing nut when working pressure is higher than 1000 psig to prevent leakage.
How to order
Materials
Add SS for 316 stainless steel as a prefix to the Basic Ordering Number.
Example: SS-BV16-TF6
Angle Pattern
Add A as a suffix to the Basic Ordering Number. Example: SS-BV16-TF6-A
Oxygen Cleaning
Add D as a suffix to the Basic Ordering Number. Example: SS-BV16-TF6-D
