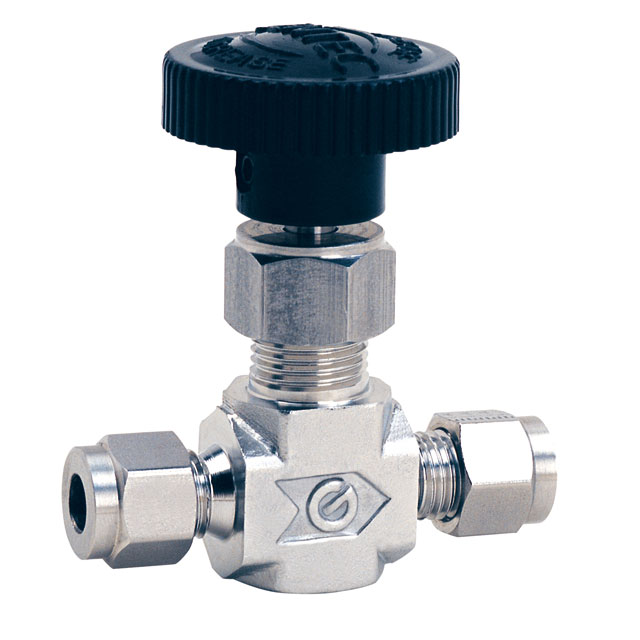

Features
- Pressure rating: 5000 psig (345 bar)
- Suitable for corrosive services, high pressure sampling systems, and shut-down systems.
- V pattern is the standard stem style. R pattern and K pattern are also available.
- End connections include GENLOK and NPT types.
- Tube fitting connections in sizes: 1/8”,1/4”,3/8”,1/2”and 3/4” (3mm, 6mm, 8mm, 10mm and 12mm).
- Straight pattern is the standard body style. Angle pattern is also available.
- Knob handle is the standard handle style. Bar pattern is also available.
- Allow for panel mounting.
- For oxygen service, please select oxygen cleaning option.
- Every valve is factory tested at 1000 psig (29 bar) for leakage. Adjust packing nut when working pressure is higher than 1000 psig to prevent leakage.
How to order
Materials
Add SS for 316 stainless steel as a prefix to the Basic Ordering Number.
Example: SS-NV14-TF12
Angle Pattern
Add A as a suffix to the Basic Ordering Number.
Example: SS-NV14-TF12-A
Stems
Add R as a suffix to the Basic Ordering Number for Regulating stem; V for Vee stem; or K for Soft-seat stem.
Example: SS-NV14-TF12-V
Oxygen Cleaning
Add D as a suffix to the Basic Ordering Number.
Example: SS-NV14-TF12-D
Bar Handle
Add B as a suffix to the Basic Ordering Number.
Example: SS-NV14-TF12-B
