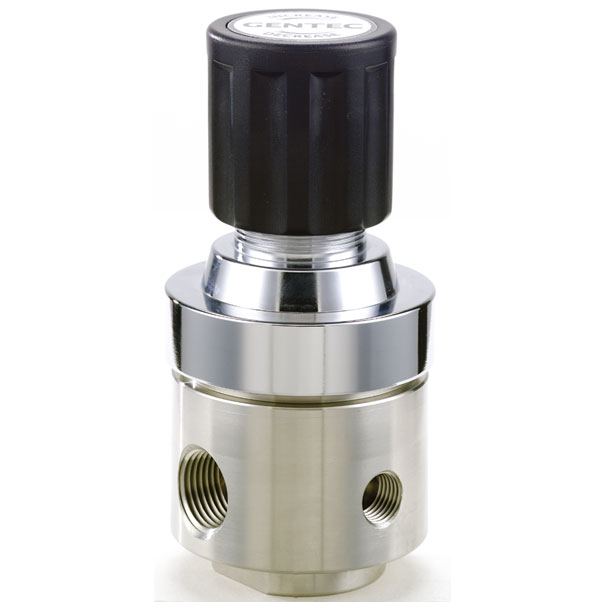

R23 Series Pressure Reducing Regulators
GENTEC® R23 series regulators are highly accurate, hand loaded, purge gas and pressure reducing regulators for applications of any non-corrosive, corrosive or toxic gases in low pressure. This series features a high flow rate of Cv=1.7 with a maximum inlet of 500 psig or 1500 psig.
- Single stage
- 316L, Hastelloy-C®, Monel® or brass body
- Metal to metal diaphragm to body seal
- 500 or 1500 psig inlet pressure
- High Flow capacity Cv= 1.7
Applications:
- Facilities gas supply
- Bulk handling of special gases
- High flow purging
- N2 blanketing
Specifications
Fluid Media
All gases compatible with materials of construction.
Please consult factory if other media is used.
Pressure Rating
ANSI/ASME B31.3 Standard
Cleaning
Standard Cleaning
ASTM-G93 and CGA 4.1 (Intermediate level )
Oxygen Service
ASTM-G93 and CGA 4.1 (Intermediate level)
The responsibility of specifying the material for oxygen usages lies with the USER.
Operating Parameters
Control Pressure Ranges: 0-15, 0-25, 0-75, 0-125 psig
Proof Pressure: 1.5 times operating pressure
Operating Temperature: -40°F to +165°F(-40°C to +74°C)
Design Maximum Inboard Leak Rate: 2 x10-8 atm cc/sec He
Flow Capacity: Cv=1.7
MaterialS With Media Contact
Body: Brass, 316L, Hastelloy® or Monel®
Seat: PCTFE , Vespel® , Teflon®
Diaphragm: 316L, Hastelloy®
Weight
6.0lbs (2.7kg)
