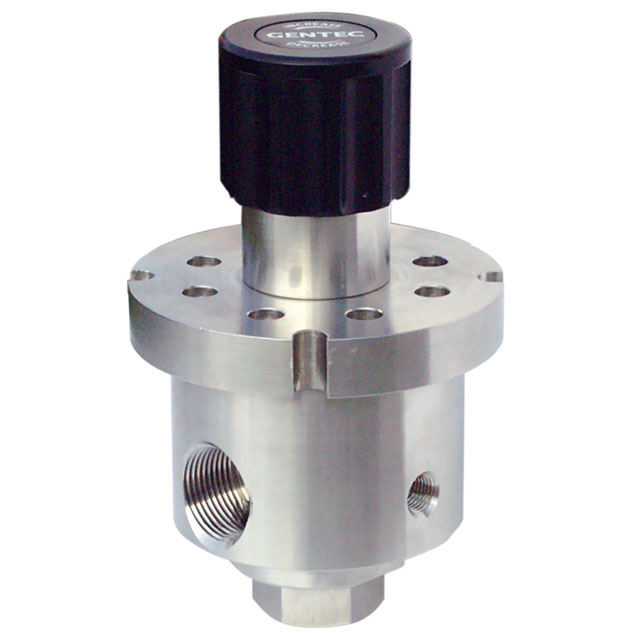

R66 Series Low Pressure Ultra High Flow Regulators
GENTEC R66 series regulators available in chrome plated brass and stainless steel are handadjustable,low pressure regulators designed to provide excellent accuracy. This series features an ultra high flow rate of Cv=5.2
FEATURES
- Spring loaded
- 500 psig inlet pressure
- Weight : 13.2lbs (6kg)
MATERIALS WITH MEDIA CONTACT
- BODY: Chrome-plated Brass, 316L
- SEAT: Buna-N
- DIAPHRAGM: Buna-N/Nylon Reinforced
SPECIFICATIONS
- Maximum Inlet Pressure: 500psig
- Outlet Pressure: 0-25, 0-50, 0-100, 0-125, 0-250psig
- Safety Test Pressure: 1.5 x Maximum Inlet Pressure
- Temperature Range: -40°F~150°F (-40°C~66°C)
- Maximum Cv: 5.2
