G152T Series Two-Stage Medium Flow Regulators
G152T series two-stage chrome plated brass regulators are designed for general purpose pressure control of non-corrosive gas applications where constant delivery pressure is desired.
FEATURES
- Two-stage construction
- 1st stage 2” diaphragm and 2nd stage 1-1/4”diaphragm
- 2” pressure gauges
- Inlet and outlet ports: 1/4” NPT (F)
- Self re-seating external safety pressure relief valve on oxygen, inert gas and air models
- Maximum inlet pressure: 3000psig

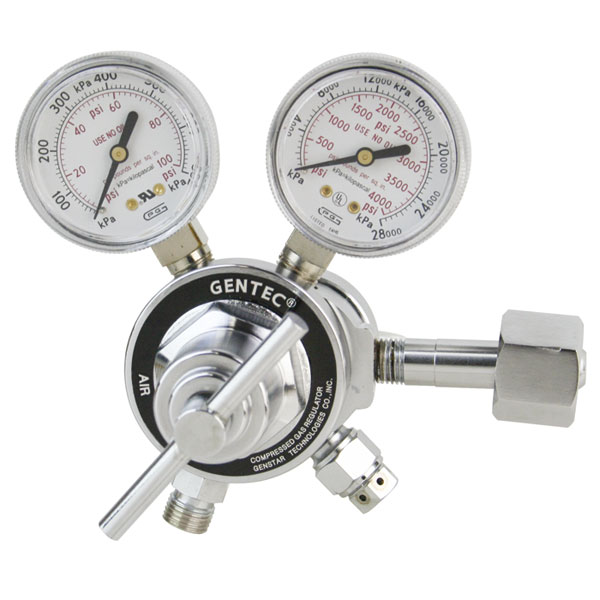

- Dimensions: 6.3in. x 5.5in. x 5.9in.(160mm x 140mm x 150mm)(as shown in picture)
- Weight: 4.63 lbs. (2.10kg)
MATERIALS WITH MEDIA CONTACT
- Body: Brass
- Bonnet: Brass
- Diaphragm: Neoprene
- Filter: Bronze (50μm)
TYPICAL APPLICATIONS
- Non-corrosive gases
- Industrial gases
- Leak testing
