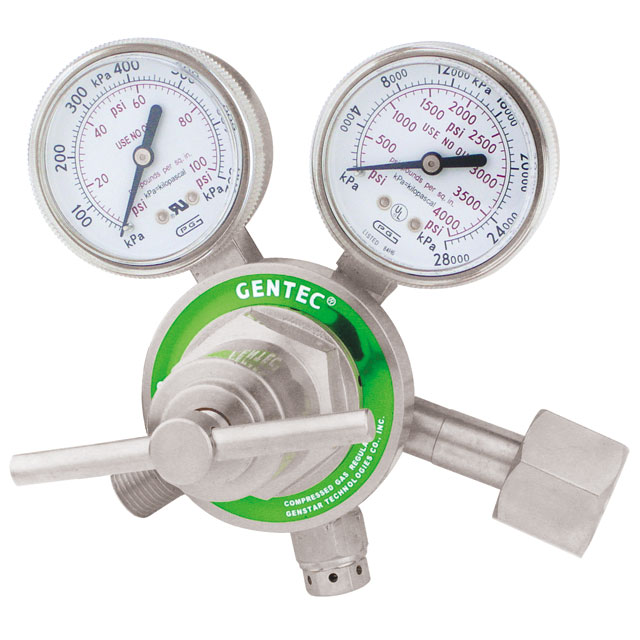

G152 Series Single-Stage Medium Flow Regulators
G152 series single-stage chrome plated brass regulators are designed for general purpose pressure control of non-corrosive gases. These regulators are most suitable for medium duty gas flow applications where slight fluctuations in outlet pressure are allowable when inlet pressure decreases.
FEATURES
- Single-stage construction
- 2” diaphragm
- 2” pressure gauges
- Inlet and outlet ports: 1/4” NPT(F)
- Self re-seating external safety pressure relief valve on oxygen, inert gas and air models
- Maximum inlet pressure: 3000psig
- Dimensions: 6.3in. x 5.5in. x 3.9in.(160mm x 140mm x 100mm)(as shown in picture)
- Weight: 2.65 lbs. (1.20kg)(as shown in picture)
- Optional needle valve for outlets.
MATERIALS WITH MEDIA CONTACT
- Body: Chrome-plated Brass
- Bonnet: Chrome-plated Brass
- Diaphragm: Neoprene
- Filter: Bronze (50μm)
TYPICAL APPLICATIONS
- Non-corrosive gases
- Industrial gases
- Hydrocarbon services
- Leak testing
