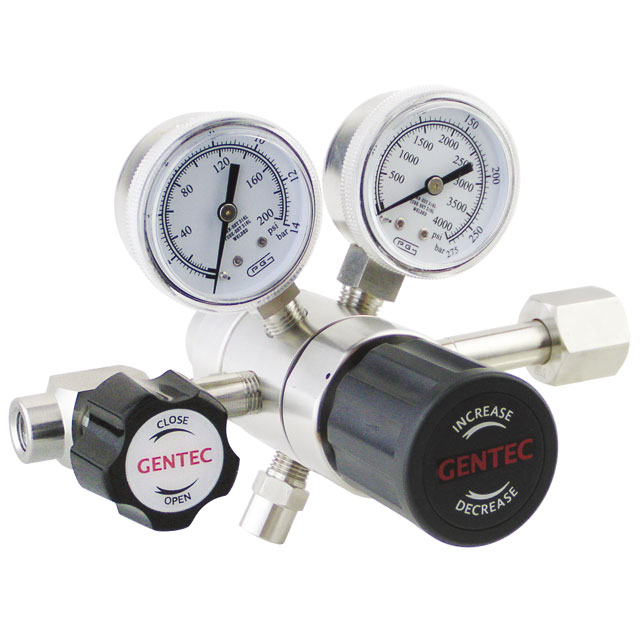

R31 Series Two-Stage Low Flow Regulators
R31 series two-stage regulators available in chrome plated brass or stainless steel are designed for pressure control of high purity and non-corrosive gases in applications where constant delivery pressure is required. The regulators feature metalto-metal diaphragm seals to prevent gas contamination. Available in both chrome-plated brass and stainless steel.
FEATURES
- Two-stage construction
- 2” pressure gauges
- Metal-to-metal diaphragm seals
- Inlet and outlet ports: 1/4” NPT(F)
- Minimal wetted surface area for less purging
- Inlet filter
- Easy front panel mounting
- Optional needle valves and diaphragm valves for outlets.
- Optional relief valve.
- Weight: 4.03 lbs. (1.83kg)
MATERIALS WITH MEDIA CONTACT
- Body: Chrome-plated Brass, 316L
- Seat: PCTFE , Vespel® , Teflon®
- Diaphragm: 316L
- Stem: 316L
- Spring: 316
SPECIFICATIONS
- Maximum Inlet Pressure: 3000 psig
- Outlet Pressure: 0-25, 0-50, 0-100, 0-250psig
- Safety Test Pressure: 1.5 x Maximum Inlet Pressure
- Temperature Range: -40°F~165°F (-40°C~74°C)
- Inboard Leakage: 2 x10-8 atm cc/sec He
- Outboard Leakage: 2 x10-8 sccs He @ Inlet Pressure: 1500psig
- Leakage across seat: 2 x10-8 sccs He @ Inlet Pressure: 1000psig
- Maximum Cv: 0.06
TYPICAL APPLICATIONS
- Research laboratories
- Gas and liquid chromatography
- Laser gas systems
- Manifold systems
- Petroleum industry
- Process analyzers
- Zero & calibration gases
- Purging systems
