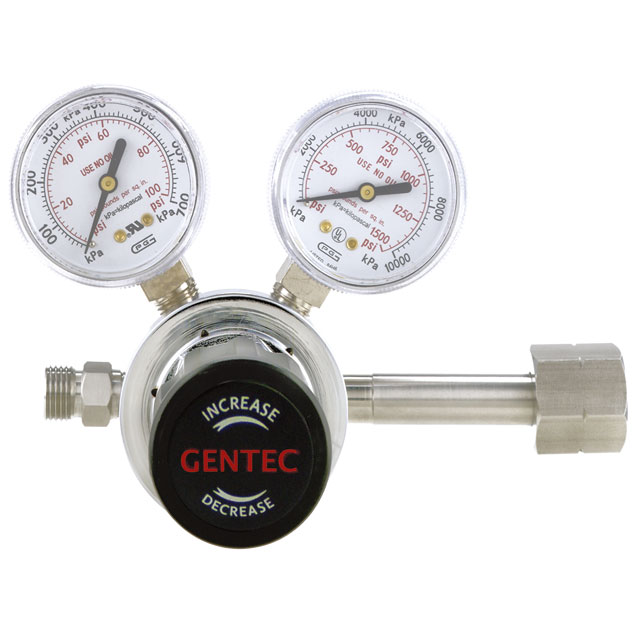

R12 Series Single-Stage Low Flow Regulators
R12 series single-stage regulators for industrial specialty gases are designed and manufactured using state-of-the-art technologies and high quality materials. Suitable for laboratory, pharmaceutical, food manufacturing, and chemical applications.
FEATURES
- Single stage
- Brass, 303, or 316L body
- Metal to metal diaphragm seal
- 1/4” NPT (female) porting for non-inlet and non-outlet connections model
- 3000, 1500, or 500 psig inlet pressure
- Various inlet and outlet connections are available (see order information)
- 2” gauge
- Weight: 3.3 lbs. (1.5 kg)
MATERIALS WITH MEDIA CONTACT
- Body: Brass, 316L, 303
- Seat: PCTFE, Teflon®
- Diaphragm: 316L
SPECIFICATIONS
- Maximum Inlet Pressure: 3000 psig
- Outlet Pressure: 0-15, 0-25, 0-50, 0-100, 0-250 psig
- Safety Test Pressure: 1.5 x Maximum Inlet Pressure
- Temperature Range: -40°F~165°F (-40°C~74°C)
- Inboard Leakage: 2 x10-8 atm cc/sec He
- Outboard Leakage: 2 x10-8 sccs He @ Inlet Pressure: 1500 psig
- Leakage across seat: 2 x10-8 sccs He @ Inlet Pressure: 1000 psig
- Maximum CV: 0.15
TYPICAL APPLICATIONS
- Research laboratories
- Gas and liquid chromatography
- Laser gas systems
- Manifold systems
- Petroleum industry
- Process analyzers
- Zero & calibration gases
- Purging systems
