R21 Series Single-Stage Low Flow Regulators
R21 series single-stage in chrome plated brass or stainless steel regulators are designed for pressure control of high purity and corrosive gases in applications where slight fluctuations in outlet pressure are allowable when inlet pressure decreases.These regulators feature metal-to-metal diaphragm seals to prevent gas contamination.
FEATURES
- Single-stage construction
- 2” pressure gauges
- Metal-to-metal diaphragm seals
- Inlet and outlet ports: 1/4” NPT (F)
- Minimal wetted surface area for less purging
- Inlet filter
- Easy front panel and rear bracket mounting
- Optional needle valves and diaphragm valves are optional for outlets.
- Optional relief valve.

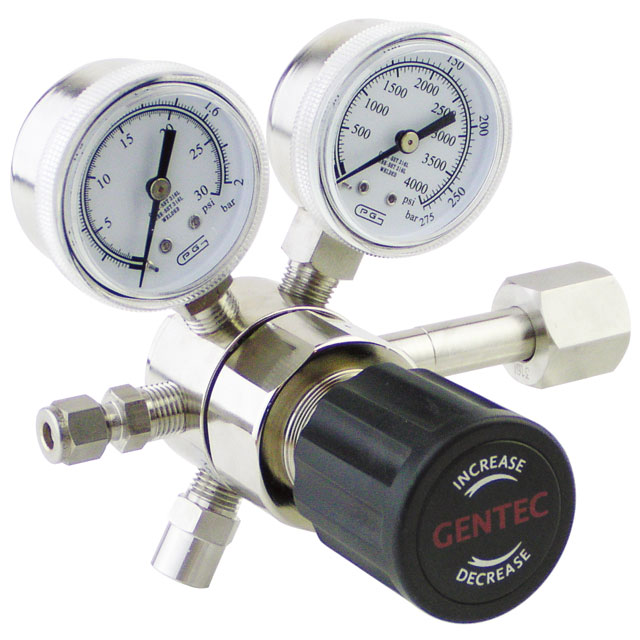

- Weight: 2.0 lbs. (0.90kg)(as shown in picture)
MATERIALS WITH MEDIA CONTACT
- Body: Brass, 316L
- Seat: PCTFE, Teflon®, Vespel®
- Diaphragm: 316L
- Stem: 316L
- Spring: 316
SPECIFICATIONS
- Maximum Inlet Pressure: 3000psig
- Outlet Pressure: 0-25, 0-50, 0-100, 0-250, 0-500psig
- Safety Test Pressure: 1.5 x Maximum Inlet Pressure
- Temperature Range: -40°F~165°F (-40°C~74°C)
- Inboard Leakage: 2 x10-8 atm cc/sec He
- Outboard Leakage: 2 x10-8 sccs He @ Inlet Pressure: 1500psig
- Leakage across seat: 2 x10-8 sccs He @ Inlet Pressure: 1000psig
- Maximum CV: 0.14
TYPICAL APPLICATIONS
- Research laboratories
- Gas and liquid chromatography
- Laser gas systems
- Manifold systems
- Petroleum industry
- Process analyzers
- Zero & calibration gases
- Purging systems
