G152L Series Single-Stage Medium Flow Line Regulat
G152L series single-stage chrome plated brass line regulators are designed for general purpose pressure control of noncorrosive gas applications where slight fluctuations in outlet pressure are allowable when inlet pressure decreases. Not for use on high-pressure gas cylinders.
DO NOT USE ON CYLINDERS.
FEATURES
- Single stage construction
- 2” diaphragm
- 2” pressure gauge
- Inlet and outlet ports: 1/4” NPT (F)
- Maximum inlet pressure: 500 psig

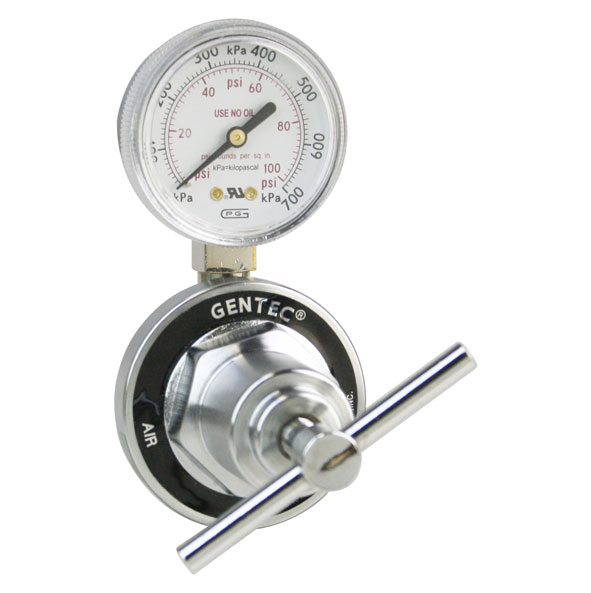

- Dimensions: 2.6in. x 5.5in. x 3.9in.(65mm x 140mm x 100mm) (as shown in picture)
- Weight: 1.87 lbs. (0.85kg)
MATERIALS WITH MEDIA CONTACT
- Body: Chrome-plated Brass
- Bonnet: Chrome-plated Brass
- Diaphragm: Neoprene
TYPICAL APPLICATIONS
- Non-corrosive gases
- Industrial gases
- Leak testing
