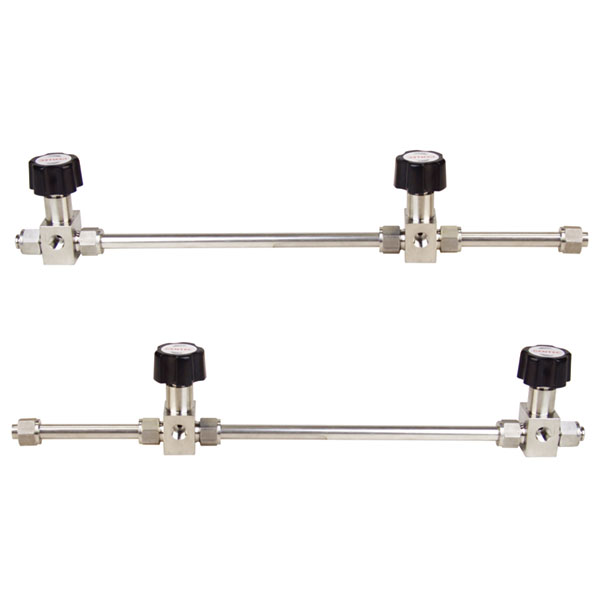

Header extensions are an important component which connects cylinders, changeover system, and regulators together to form a manifold system. Spacers for connecting changeover system and header extension are available in 6” and 12” long for option.
FEATURES
- Modular design for easy installation on future expansion.
- Uses diaphragm valve to ensure seal integrity
- Compression fittings
- Design for Left / Right setups
- Piping is tested for pressure and leakage.
- Maximum Inlet pressure: 3000psig
- Spacers are available for option
MATERIALS
- Pipe：OD 1/2”, 316L seamless stainless steel tubing (BA grade)
- Connector：316
- Diaphragm valve：316L diaphragm, PCTFE seat, 316L body
