B150/B160B/SL150/SL160 Series

Product Description

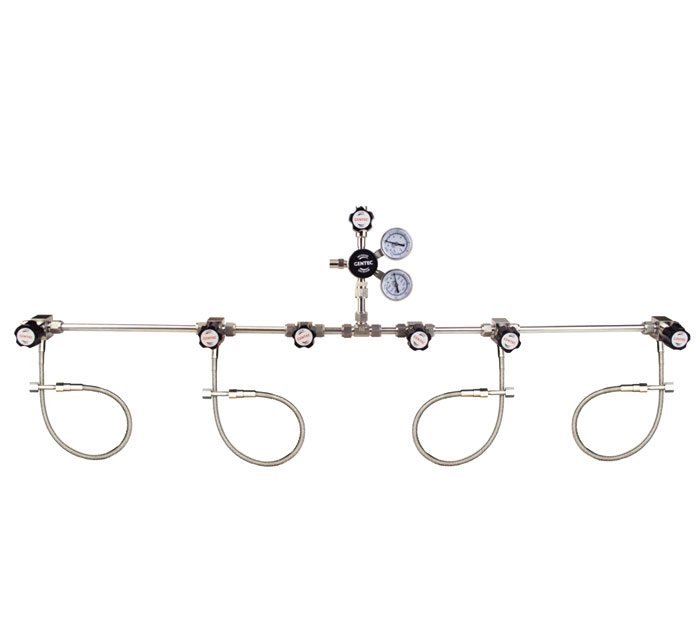

SL150 series manifold system uses R21SL regulator and B150 series uses R21B regulator, suitable for small, medium flow application
SL160 series manifold system uses R22SL regulator and B120 series uses R22B regulator, suitable for medium, large flow application

FEATURES:

• R21 or R22 regulator
• Complete with safety valve
• Stainless steel pigtail with check valve
• Dual line of cylinders, reduced down time during cylinder change.
• Main diaphragm shut off valve on both side for easy cylinder changeover.
• Piping is tested for pressure and leakage.
• Wall mounts optional
SPECIFICATIONS:

• Maximum Inlet pressure: 3000psig
• Working temperature: -40^oF ~ 140^oF(-40^oC ~ 60^oC)
• Pipe: 1/2” seamless stainless steel (BA grade)
• Flow rate: see flow chart
• Regulators leak rate: 2 x 10-9 scc/sec Helium
R21 REGULATOR MATERIALS:

• Body: 316L, Chrome-plated brass
• Diaphragm, filter: 316L
• Bonnet: 304, Chrome-plated brass
• Seat: PCTFE
• Stem: 316L
• Spring: 316
R22 REGULATOR MATERIALS:

• Body: 316L, Chrome-plated brass
• Diaphragm, filter: 316L
• Bonnet: Chrome-plated brass
• Seat: PCTFE
• Stem: 316L
• Spring: 316
OPTIONAL COMPONENTS:

• Diaphragm valve
• Needle valve
• Filter
• Flash back arrestor
• Pigtails
• Pressure alarm
