B110/B120BSL110/SL120 Series

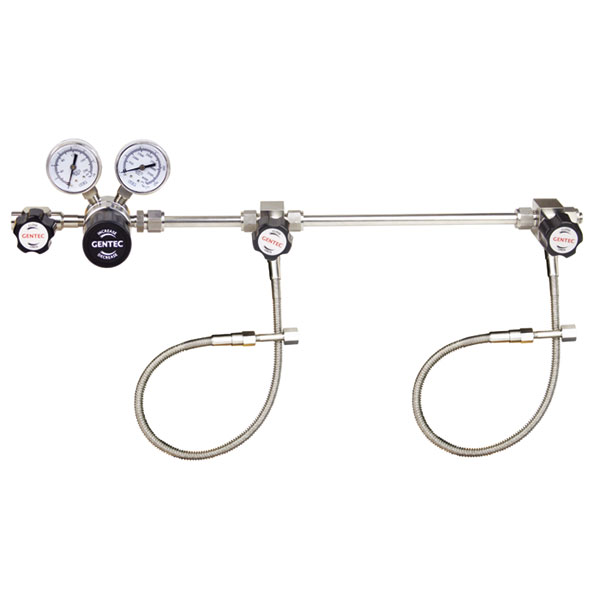

B110/B120/SL110/SL120 series simplex manifold system.
SL100 series manifold system uses R21SL regulator and B110 series uses R21B regulator, suitable for small, medium flow application.
SL120 series manifold system uses R22SL regulator and B120 series uses R22B regulator, suitable for medium, large flow application.
FEATURES:
- R21 or R22 regulator
- Complete with safety valve
- Stainless steel pigtail with check valve
- Single line of cylinders, gas supply interrupted during cylinder change
- Piping is tested for pressure and leakage.
- Wall mounts optional
SPECIFICATIONS:
- Maximum Inlet pressure: 3000psig
- Working temperature: -40 oF ~ 165 oF(-40 oC ~ 74 oC)
- Pipe: 1/2” seamless stainless steel (BA grade)
- Flow rate: see flow data chart
- Regulator leak rate: 2 x 10-8 atm cc/sec He
R21 REGULATOR MATERIALS:
- Body: 316L, Chrome-plated brass
- Diaphragm, filter: 316L
- Bonnet: 304, Chrome-plated brass
- Seat: PCTFE
- Stem: 316L
- Spring: 316
R22 REGULATOR MATERIALS:
- Body: 316L, Chrome-plated brass
- Diaphragm, filter: 316L
- Bonnet: Chrome-plated brass
- Seat: PCTFE
- Stem: 316L
- Spring: 316
OPTIONAL COMPONENTS:
- Diaphragm valve
- Needle valve
- Filter
- Flash back arrestor
- Pigtails
- Pressure alarm
