International DINSE Type Machine Plugs

Product Description

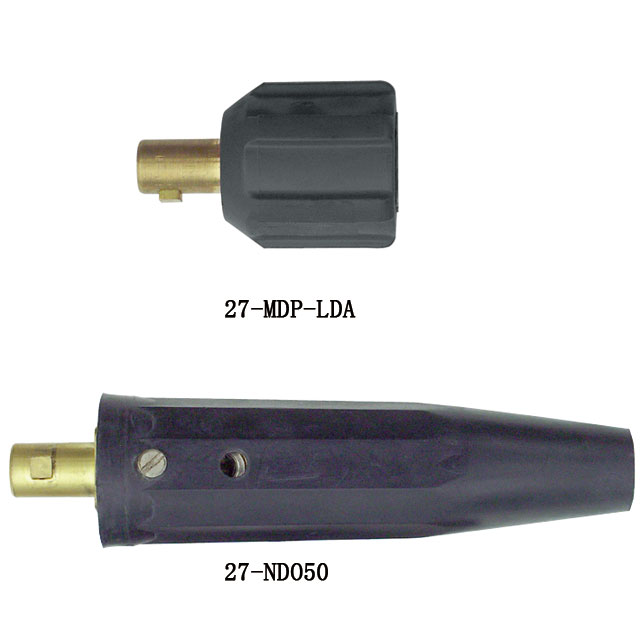

GENTEC International DINSE Type Machine Plugs are designed for use with No. 8 through No. 4/0 AWG size cable. Model 27-LDA one-piece adapter has a DINSE style male plug for connecting a power source on one end and a US style female socket (27-CC40F/27-CCR40F) to the other end.



MODEL # See below chart for DINSE compatibility. Use the letter in ( ) to match items LENCO® EQUIV. CABLE CAPACITY MALE END DIAMETER CABLE CAONNECTION (A)27-MPD25 LPD-25M 8-4 0.355" S.Ball Point (B)27-MPD50 LPD-50M 4-1/0 0.508" S.Ball Point (C)27-MPD70 LPD-70M 1/0-2/0 0.508" S.Ball Point (D)27-MPD95 LPD-95M 3/0-4/0 0.508" D.Ball Point (E)27-MPD-LDA LDA -- 0.508" --

DINSE Type Machine Plugs Compatibility Chart DINSE ESAB® KEMPPI LINCOLN M.K. MILLER® POWCON® (A) DIX SK 25 160360895 9771650 S19301-6 N/A N/A N/A (B) DIX SK 50 N/A 9771670 N/A N/A 042-418 930008-001 (C) DIX SK 70 13792513 9771680 K-852-70 153-0755 042-533 N/A (D) DIX SK 95 13792513 N/A K852-95 N/A 042-574 N/A (E) N/A N/A N/A N/A N/A
