Rotary-Work Ground Clamps

Product Description

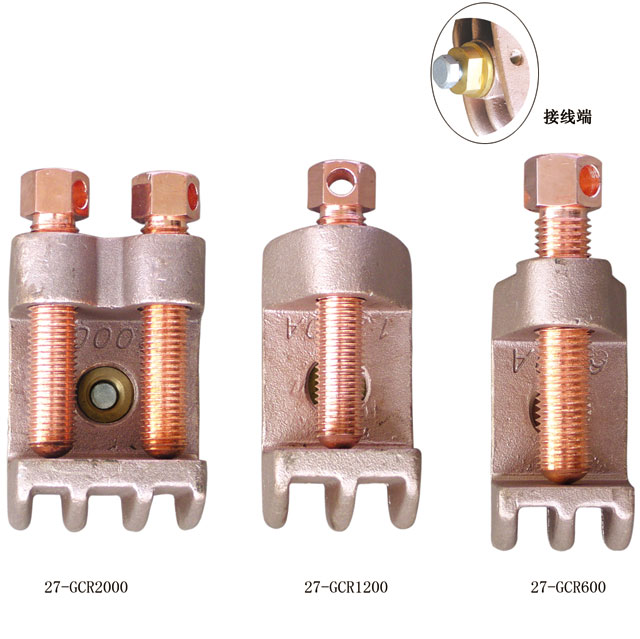

GENTEC Rotary-Work Ground Clamps are designed for high amperage grounding work in combination with rotary grounding devices. It saves welding down time by quick attachment and movement from one weldment to the other without removing the rotary grounding devices. They are made from 98% copper alloy. Models 27-GCR600 and 27-GCR1200 have a single tightening screw. Model 27-GCR2000 has two tightening screws.



MODEL#	AMPERAGE CAPACITY	THROAT HEIGHT	THROAT DEPTH	FITS TWECO ® ROTARY GROUND DEVICES	CLAMP CONTACT	HEIGHT	WIDTH
27-GCR600	600	2-1/2"	2-1/2"	RG-230	6.25 Sq.Inch	5-3/4"	2-1/2"
27-GCR1200	1200	3"	3"	RG-240/RG-440	9 Sq.Inch	6-3/4"	3"
27-GCR2000	2000	3"	3"	RG-400/RG-640	12Sq.Inch	6-3/4"	4"
