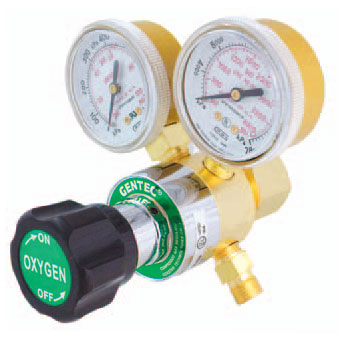

210 Series Regulators

Product Description

210 Series Regulators feature a compact rear entry design to meet the demands of special installation. These regulators are ideal for light and medium duty gas welding, cutting and heating applications.

Rear entry inlet construction
Body is machined from class "A" brass bar stock
Chrome plated housing cap
Internal safety pressure relief valve
Sintered bronze inlet filter
Stem type seat assembly for more reliable seating
Plastic adjustment knob for smooth "easy touch" pressure setting
2" gauges and 1-1/4" diaphragm
UL Listed

MODEL #	GAS SERVICE	MAX. INLET PRESSURE (PSI)	MAX. DELIVERY PRESSURE (PSI)	INLET GAUGE	OUTLET GAUGE	INLET CONNECTION	OUTLET CONNECTION
210F-80	Propane	400	4-80	2", 4000PSI	2", 100PSI	CGA510 Rear	9/16"-18LH(M)
210X-80	Oxygen	3000	4-80	2", 4000PSI	2", 100PSI	CGA540 Rear	9/16"-18RH(M)
210X-80-A	Oxygen	3000	4-80	2", 4000PSI	2", 100PSI	CGA540 Rear	3/8"-24RH(M)
210Y-15	Acetylene	400	2-15	2", 400PSI	2", 30PSI, RL	CGA200 "MC" Rear	9/16"-18LH(M)
210Y-15-A		400	2-15	2", 400PSI	2", 30PSI, RL	CGA200 "MC" Rear	3/8"-24RH(M)
GRAMC2		400	2-15	2", Content	2", 30PSI, RL	CGA200 "MC" Rear	3/8"-24LH(M)
210Y-15-510A		400	2-15	2", 400PSI	2", 30PSI, RL	CGA510 Rear	3/8"-24LH(M)
210Y-15-510B		400	2-15	2", 400PSI	2", 30PSI, RL	CGA510 Rear	9/16"-18LH(M)
210X-15-300A		400	2-15	2", 400PSI	2", 30PSI, RL	CGA300 Rear	3/8"-24LH(M)
210Y-15-300B		400	2-15	2", 400PSI	2", 30PSI, RL	CGA300 Rear	9/16"-18LH(M)
GRAB2		400	2-15	2", Content	2", 30PSI, RL	CGA520 Rear	3/8"-24LH(M)

1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
