Welding/Brazing Tips & Nozzles

Product Description

Oxy-Acetylene Welding and Brazing Tips

171W Series welding and brazing tips have red copper tip ends and are ideal for soldering, brazing, heating and hardfacing, etc. G17-VMA-1 Rosebud tips are multi-flamed tips designed for heating in confined area.

171W
Welding & Brazing Tip


G17-VMA-1 Rosebud Tip

MODEL #	SIZE	DUTY	FITS
171W-000	000	Light	140T 141TA
171W-00	00	Light
171W-0	0	Light
171W-1	1	Light
171W-2	2	Light
171W-3	3	Light
171W-4	4	Light
171W-5	5	Light
171W-6	6	Light
G17-VMA-1	1	Light

Oxy-Acetylene Heating Nozzles

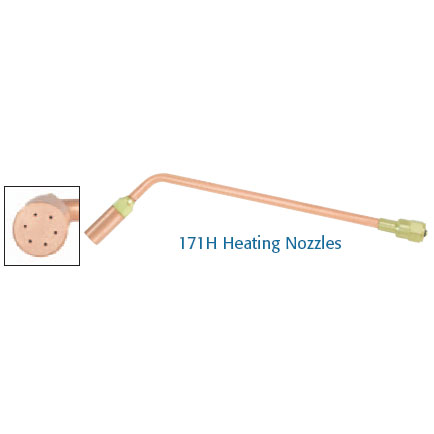

171H Heating Nozzles

MODEL #	SIZE	FITS
171H	2,4,6	140T 141TA

Oxy-Acetylene Mini-Style Brazing Tips

GENTEC Mini-Style Oxy-Acetylene Brazing Tips are rugged and short designed to provide precise concentrated heat up to 6000°F.

GMTW
Welding Tip


GMTR Rosebud Tip	GMTT Welding Tip

MODEL #	BRAZING CAPACITY	OVERALL LENGTH	FITS
GMTW-1	1/2"	3"	140T 141TA
GMTW-2	1"	3"
GMTT	1"	4"
GMTR	1-1/2"	4"

Oxy-Acetylene Flexible Brazing Tips

GENTEC G17-FT Flexible Brazing Tip has 9" long flexible elbow that can be shaped to provide flexibility for various flame positions. It then can be reshaped for the next application.

G17-FT
Flexible Brazing Tip


G17-FT 45°	G17-FT 90°

MODEL #	FITS
G17-FT	140T 141TA

Oxy-Acetylene Flexible Twin Heating Tips

G13-8VM Flexible Twin Heating Tip has two flexible elbows that can be shaped to provide flexibility for various flame positions. It then can be reshaped for the next application.

G13-8VM

MODEL #	FITS
G13-8VM	140T 141TA

Multi-Gas Brazing Heating Nozzles


G17 Brazing Heating Nozzle	883TE Replacement Tips End


883TEMFA Replacement Tips End	883TEN Replacement Tips End

MODEL #	FITS	SIZE	REPLACEMENT TIPS END	GAS SERVICE	SIZE AVAILABLE
G17	140T & 141TA	1-5	883TEN	Oxy-Propane	0-5
			883TE	Oxy-Acetylene	0-5
			883TEMFA	Oxy-Acetylene	1-5

Technical Data

171W, G17
Tip Size	Metal Thickness	Drill Size	Oxygen (PSIG)	Acetylene (PSIG)	Acetylene (SCFH)
000	UP TO 1-32"	75(.022)	3/5	3/5	1/2
00	1/16"-3/64"	70(.028)	3/5	3/5	1-1/2/3
0	1/32"-5/64"	65(.035)	3/5	3/5	2/4
1	3/64"-3/32"	60(.040)	3/5	3/5	3/6
2	1/16"-1/8"	56(.046)	3/5	3/5	5/10
3	1/8"-3/16"	53(.060)	4/7	3/6	8/18
4	3/16"-1/4"	49(.073)	5/10	4/7	10/25
5	1/4"-1/2"	43(.089)	6/12	5/8	15/35
6	1/2"-3/4"	36(.106)	7/14	6/9	25/45

G17-VMA-1, G17-FT, G13-8VM
Model Number	Oxygen (PSIG)	Acetylene Fuel (PSIG)	Acetylene (SCFH)	Brazing Capacity for Copper
G17-VMA-1	15	12	30	1/2"-6"
G17-FT	5	5	4	Up to 7/8"
G13-8VM	25	15	60	4" to 12"

171H
Tip Size	Oxygen (PSIG)	Acetylene Fuel (PSIG)	Oxygen (SCFH)	Acetylene Fuel
2	4/8	4/8	3/10	3/9
4	8/12	6/10	7/22	6/20
6	10/15	8/12	15/44	14/40
