Air Acetylene Tips

Product Description

Air Gas Tips

GENTEC Air Gas Tips are constructed with stainless steel and brass. Swirl flame tips produce a very hot efficient flame for fast soldering and brazing. Swirl flame tips mix fuel and air completely through a helical blade providing maximum combustion efficiency at the end of the tip. Swirl flame tips with replaceable tip ends, are available for Air-Acetylene and Air-Propane applications. Soft flame tips are available for Air-Acetylene applications.

Air Acetylene, Swirl Flame Tips

All swirl flame tips have replaceable Stainless Steel tip ends.

QUICK CONNECT

6Q-2TA	6Q-3TA	6Q-5TA	6Q-8TA	6Q-11TA	6Q-14TA

QUICK CONNECT
MODEL #	REPLACEMENT TIP END	COPPER TUBING SIZE CAPACITY
MODEL #	REPLACEMENT TIP END	SOFT SOLDER	SILVER SOLDER
6Q-2TA	2TEA	1/8" - 1/2"	1/8" - 1/4"
6Q-3TA	3TEA	1/4" - 1"	1/8" - 1/2"
6Q-5TA	5TEA	3/4" - 1 1/2"	1/4" - 3/4"
6Q-8TA	8TEA	1" - 2"	1/2" - 1"
6Q-11TA	11TEA	1 1/2" - 3"	7/8" - 1 5/8"
6Q-14TA	14TEA	2" - 3 1/2"	1" - 2"

SCREW CONNECT

7S-3TA	7S-5TA	7S-8TA	7S-11TA

SCREW CONNECT
MODEL #	REPLACEMENT TIP END	COPPER TUBING SIZE CAPACITY
MODEL #	REPLACEMENT TIP END	SOFT SOLDER	SILVER SOLDER
7S-3TA	3TEA	1/4" - 1"	1/8" - 1/2"
7S-5TA	5TEA	3/4" - 1 1/2"	1/4" - 3/4"
7S-8TA	8TEA	1" - 2"	1/2" - 1"
7S-11TA	11TEA	1 1/2" - 3"	7/8" - 1 5/8"

Air Acetylene, Soft Flame Tips

QUICK CONNECT

6Q-1SA	6Q-2SA	6Q-3SA	6Q-4SA	6Q-5SA	6Q-6SA

QUICK CONNECT
MODEL #	COPPER TUBING SIZE CAPACITY
MODEL #	SOFT SOLDER	SILVER SOLDER
6Q-1SA	1/16" - 1/8"	up to 1/16"
6Q-2SA	1/8" - 3/8"	up to 1/8"
6Q-3SA	3/8" - 1/2"	up to 3/8"
6Q-4SA	1/2" - 1"	up to 1/2"
6Q-5SA	3/4" - 1 1/2"	1/2" - 3/4"
6Q-6SA	1" - 4"	3/4" - 1 1/2"

SCREW CONNECT

7S-1SA	7S-2SA	7S-3SA	7S-4SA	7S-5SA	7S-6SA

SCREW CONNECT
MODEL #	COPPER TUBING SIZE CAPACITY
MODEL #	SOFT SOLDER	SILVER SOLDER
7S-1SA	1/16" - 1/8"	up to 1/16"
7S-2SA	1/8" - 3/8"	up to 1/8"
7S-3SA	3/8" - 1/2"	up to 3/8"
7S-4SA	1/2" - 1"	up to 1/2"
7S-5SA	3/4" - 1 1/2"	1/2" - 3/4"
7S-6SA	1" - 4"	3/4" - 1 1/2"

Air Propane/MAPP®, Swirl Flame Tips

All swirl flame tips have replaceable Stainless Steel tip ends.

QUICK CONNECT

6Q-2TP	6Q-3TP	6Q-4TP	6Q-5TP	6Q-6TP

QUICK CONNECT
MODEL #	REPLACEMENT TIP END	COPPER TUBING SIZE CAPACITY
		PROPANE GAS		MAPP® GAS
		SOFT SOLDER	SILVER SOLDER	SOFT SOLDER	SILVER SOLDER
6Q-2TP	2TEP	1/8" - 1/4"	1/16" - 1/4"	1/8" - 1/2"	1/8" - 1/4"
6Q-3TP	3TEP	1/4" - 1"	1/8" - 1/2"	1/4" 1 1/2"	1/4" - 1/2"
6Q-4TP	4TEP	1/4" - 1 1/2"	1/4" - 3/4"	1/4" - 2 1/2"	1/4" - 1 1/4"
6Q-5TP	5TEP	1 1/2 " - 2 1/2"	1/2" - 1 1/4"	1" - 4"	1/2" - 2"
6Q-6TP	6TEP	1 1/2 " - 4 "	3/4" - 2 "	1 1/2 " - 6 "	3/4" - 4 "

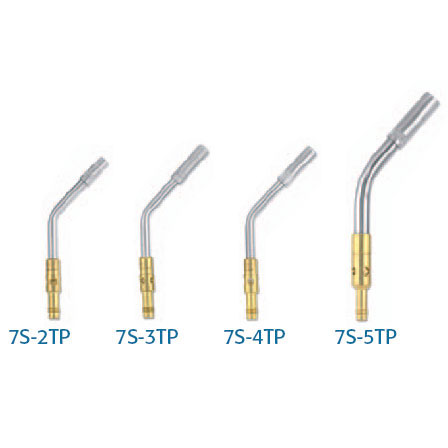

SCREW CONNECT

7S-2TP	7S-3TP	7S-4TP	7S-5TP

SCREW CONNECT
MODEL #	REPLACEMENT TIP END	COPPER TUBING SIZE CAPACITY
		PROPANE GAS		MAPP® GAS
		SOFT SOLDER	SILVER SOLDER	SOFT SOLDER	SILVER SOLDER
7S-2TP	2TEP	1/8" - 1/4"	1/16" - 1/4"	1/8" - 1/2"	1/8" - 1/4"
7S-3TP	3TEP	1/4" - 1"	1/8" - 1/2"	1/4" 1 1/2"	1/4" - 1/2"
7S-4TP	4TEP	1/4" - 1 1/2"	1/4" - 3/4"	1/4" - 2 1/2"	1/4" - 1 1/4"
7S-5TP	5TEP	1 1/2 " - 2 1/2"	1/2" - 1 1/4"	1" - 4"	1/2" - 2"

Heat Shield

Gentec GHS-14 Heat Shield is designed to protect the surrounding area from the hot flame. It also keeps the flame stable in windy areas. One size fits most of the GENTEC tips.
(Fitss 6Q-4TP, 6Q-11TA, 8Q-3TP, 7S-4TP, 7S-11TA)


GHS-14
