Heating Nozzles

Product Description

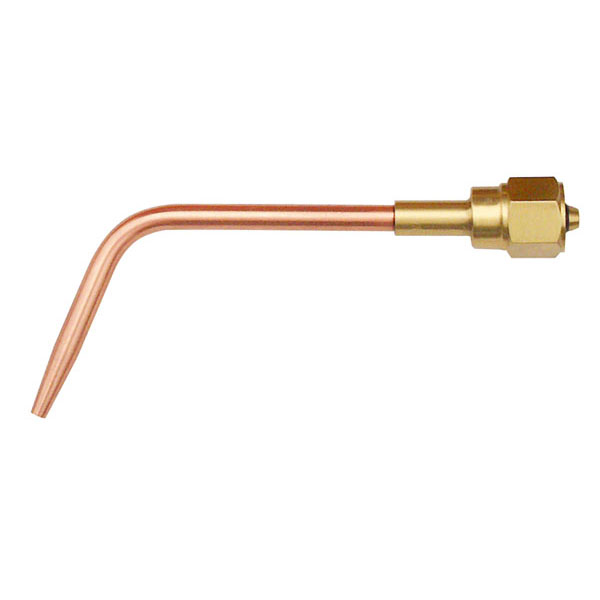

Oxy-Acetylene And Oxy-Hydrogen Heating Nozzles

173H-12 and 173H-15 are also used for Propylene based fuel gases and MAPP®
VICTOR® compatible
Ideal for preheating and straightening, etc.

171H

171H

172H

172H

173H

173H

MODEL #	TIP SIZE	DUTY	OXYGEN (PSIG)	ACETYLENE FUEL (PSIG)	OXYGEN (SCFH)	ACETYLENE FUEL (SCFH)	VICTOR® EQUIV.	FITS
171H-2	2	Light	4/8	4/8	3/10	3/9	2-MFA-J	140T 141T
171H-4	4	Light	8/12	6/10	7/22	6/20	4-MFA-J
171H-6	6	Light	10/15	8/12	15/44	14/40	6-MFA-J
172H-2	2	Medium	4/8	4/8	3/10	3/9	2-MFA-1	142T
172H-4	4	Medium	8/12	6/10	7/22	6/20	4-MFA-1
172H-6	6	Medium	10/15	8/12	15/44	14/40	6-MFA-1
172H-8	8	Medium	20/30	10/15	33/88	30/80	8-MFA-1
173H-4	4	Heavy	8/12	6/10	7/22	6/20	4-MFA	143T 143TL 143TLH
173H-6	6	Heavy	10/15	8/12	15/44	14/40	6-MFA
173H-8	8	Heavy	20/30	10/15	33/88	30/80	8-MFA
173H-10	10	Heavy	30/40	12/15	44/110	40/100	10-MFA
173H-12	12	Heavy	50/60	12/15	66/165	60/150	12-MFA
173H-15	15	Heavy	50/60	12/15	99/244	90/220	15-MFA

173H-12 and 173H-15 are also used for Propylene based fuel gases and MAPP®

Oxy-Acetylene And Oxy-Hydrogen Heating Elbows & Mixers

872H

872H

MODEL #	TIP SIZE	DUTY	FITS TORCH HANDLE	FITS MIXER
871H-2	2	Light	140T 141T	871M-7
871H-4	4	Light
871H-6	6	Light
872H-2	2	Medium	142T	872M-7
872H-4	4	Medium		872M-7
872H-6	6	Medium		872M-74
872H-8	8	Medium		872M-7
873H-4	4	Heavy	143T 143TL 143TLH	873M-10
873H-6	6	Heavy
873H-8	8	Heavy
873H-10	10	Heavy
873H-12	12	Heavy
873H-15	15	Heavy

Oxy-Propane And Oxy-Natural Gas Heating Nozzles

Heavy swagged copper tip with recessed face
Ideal for preheating and straightening, etc.

173HN

173HN

MODEL #	TIP SIZE	DUTY	OXYGEN (PSIG)	ACETYLENE FUEL (PSIG)	OXYGEN (SCFH)	ACETYLENE FUEL (SCFH)	VICTOR® EQUIV.	FITS TORCH HANDLE
171HN-6	6	Light	8/20	2/10	20/80	5.5/20	6-MFN-J	140T 141T
171HN-8	8	Light	10/20	10/15	40/140	10/35	8-MFN-J	140T 141T
172HN-6	6	Medium	8/20	2/10	20/80	5.5/20	6-MFN-1	142T
172HN-8	8	Medium	10/20	10/15	40/140	10/35	8-MFN-1	142T
173HN-8	8	Heavy	10/20	10/15	40/140	10/35	8-MFN	143T 143TL 143TLH
173HN-10	10	Heavy	10/30	12/20	80/320	20/80	10-MFN
173HN-12	12	Heavy	30/125	15/25	120/640	30/160	12-MFN
173HN-15	15	Heavy	30/125	15/25	200/800	50/200	15-MFN
173HN-20	20	Heavy	40/135	15/25	300/1000	75/250	20-MFN

Oxy-Acetylene Heating Nozzle

HARRIS® compatible

MODEL #	TIP SIZE	DUTY	OXYGEN (PSIG)	ACETYLENE FUEL (PSIG)	OXYGEN (SCFH)	ACETYLENE FUEL (SCFH)	HARRIS® EQUIV.	FITS TORCH HANDLE	FITS MIXER
472H-2	2	Medium	3/7	3/7	N/A	30/50	J-63-2	442T	472M
								443T	473M

175HN All Fuel Gases (Except Acetylene) Heating Nozzles

For use with any fuel gas except acetylene
Components of 175HN series are available
Replaceable red copper heating tips for longer service
Threaded elbows provide the extension of these nozzles
Are ideal for preheating, straightening, etc.
Compatible with VICTOR® Type 55

175HN

175HN

MODEL #	TIP SIZE	DUTY	LENGTH	OXYGEN (PSIG)	ACETYLENE FUEL (PSIG)	OXYGEN (SCFH)	ACETYLENE FUEL (SCFH)	VICTOR® EQUIV.	FITS
175HN-10	10	Heavy	28"	70/100	15/25	150/200	150/200	Type 55	143T 143TL 143TLH
175HN-15	15	Heavy	28"	90/120	30/35	250/350	250/350	Type 55
175HN-20	20	Heavy	28"	100/150	30/50	400/500	400/500	Type 55

Heating Elbows

MODEL #	ANGLE (DEGREE)	LENGTH	FITS
875HEL-14	65	14"	143T 143TL 143TLH
875HEL-26	65	26"
875HEL-28	180	28"

Heating Heads

MODEL #	SIZES	DUTY	VICTOR® EQUIV.
875HRB-10	10	Heavy	Type 55
875HRB-15	15	Heavy	Type 55
875HRB-20	20	Heavy	Type 55

Mixers

MODEL #	USED WITH PRESSURE	VICTOR® EQUIV.
876M	10 PSI and Up
