| Hand Cutting Torches |
 |
 |

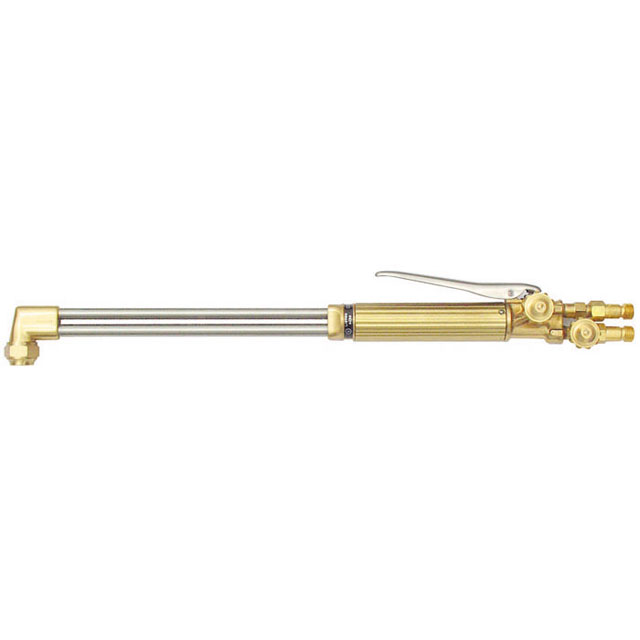

| Model 163S Illustrated | |
GENTEC Hand Cutting Torches are machined from high-quality forged brass. Model 161S, 162 and 163 Series feature tube mix design. 263 Series and Model 363S have inline tubes arrangement and can be used with any type fuel gases, such as acetylene, propane, natural gas, propylene and MAPP, 2 PSIG and above. 463 Series has triangular tubes arrangement and are compatible to HARRIS model 62-3. 463 Series also has models available for oxy-acetylene, and oxy-propane cutting operations. Balanced design and rugged construction is ideal for medium or heavy duty cutting and scraping operations.
|
| 161S |
 |
| 161S Medium Duty | |
| MODEL # |
CUTTING RANGE |
HEAD ANGLE
(DEGREE) |
WEIGHT |
LENGTH |
VICTOR® EQUIV. |
USES CUTTING TIP |
| 161S-17 |
6" |
90° |
1 lb. 10oz. |
17" |
CST800C |
172C
172CN | |
|
| 162 And 163 Series |
 |
| 163S Heavy Duty | |
 |
| 163L Heavy Duty | |
| MODEL # |
CUTTING RANGE |
HEAD ANGLE
(DEGREES) |
LENGTH |
VICTOR® EQUIV. |
USES CUTTING TIP |
| 162S-17 |
6" |
90° |
17" |
SST900C |
173C
173CN |
| 162L-21 |
6" |
90° |
21" |
ST900C |
| 163S-17 |
14" |
90° |
17" |
SST1600C |
| 163L-21 |
14" |
90° |
21" |
ST1600C |
| 163L-27 |
14" |
90° |
27" |
ST1610C |
| 163L-36 |
14" |
90° |
36" |
ST1630C |
| 163L-48 |
14" |
90° |
48" |
ST1650 |
| 163AL-21 |
14" |
75° |
21" |
ST1601C |
| 163AL-27 |
14" |
75° |
27" |
ST1611C |
| 163AL-36 |
14" |
75° |
36" |
ST1631C |
| 163AL-48 |
14" |
75° |
48" |
ST1651C |
| 163SL-21 |
14" |
180° |
21" |
ST1602 |
| 163SL-27 |
14" |
180° |
27" |
ST1612 |
| 163SL-36 |
14" |
180° |
36" |
ST1632C |
| 163SL-48 |
14" |
180° |
48" |
ST1652C |
| |
| 263 Series |
 |
| 263S Medium Duty | |
 |
| 263L Medium Duty | |
| MODEL # |
CUTTING RANGE |
WEIGHT |
LENGTH |
USES CUTTING TIP |
| 263S-18 |
12" |
2 lbs. |
18" |
672C
AIRCO® Style Cutting Tips |
| 263L-21 |
12" |
2 lbs. 4 oz. |
21" | | |
|
|
| 363S |
 |
| 363S Heavy Duty | |
| MODEL # |
CUTTING RANGE |
WEIGHT |
LENGTH |
USES CUTTING TIP |
| 363S-18 |
14" |
2 lbs. 7 oz. |
18" |
672C
AIRCO® Style Cutting Tips | | |
|
|
| 463 Series Oxy-Acetylene |
 |
| 463E Medium/Heavy Duty | |
 |
| 463EL-21 Medium/Heavy Duty | |
 |
| 463EL-36 Medium/Heavy Duty | |
| MODEL # |
CUTTING RANGE |
LENGTH |
HEAD ANGLE (DEGREES) |
USES CUTTING TIP |
| 463AE-18 |
12" |
18" |
70° |
472C |
| 463AEL-21 |
12" |
21" |
70° |
| 463AEL-36 |
12" |
36" |
70° |
| 463E-18 |
12" |
18" |
90° |
| 463EL-21 |
12" |
21" |
90° |
| 463EL-36 |
12" |
36" |
90° |
| 463SE-18 |
12" |
18" |
180° |
| 463SEL-21 |
12" |
21" |
180° |
| 463SEL-36 |
12" |
36" |
180° | | |
|
|
| 463 Series Oxy-Fuel Gases |
| MODEL # |
CUTTING RANGE |
LENGTH |
HEAD ANGLE (DEGREES) |
USES CUTTING TIP |
| 463AF-18 |
12" |
18" |
70° |
472CN |
| 463AFL-21 |
12" |
21" |
70° |
| 463AFL-36 |
12" |
36" |
70° |
| 463F-18" |
12" |
18" |
90° |
| 463FL-21 |
12" |
21" |
90° |
| 463FL-36 |
12" |
36" |
90° |
| 463SF-18 |
12" |
18" |
180° |
| 463SFL-21 |
12" |
21" |
180° |
| 463SFL-36 |
12" |
36" |
180° | | |
