- Welds up to 3/16" and cuts up to 1/2" - will weld up to 1-1/4" and cut up to 6" with optional larger tips

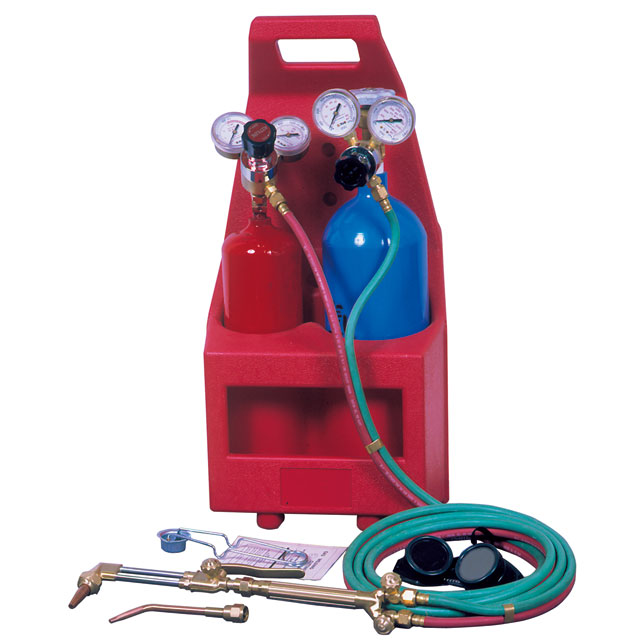

- A light to medium duty portable outfit that is extremely popular for general maintenance work, metal sculpture, automotive repair, air conditioning, refrigeration, etc. The carrier is made of tough, lightweight polypropylene and is designed to carry one "MC" acetylene cylinder, and one "R" (20 cu. ft.) oxygen cylinder and apparatus.
- Featured with this outfit are rear entry regulators for better balance on the small cylinders. The acetylene regulator has an "MC" (CGA 200) inlet connection and the oxygen regulator has the standard CGA 540 connection.
- The outfit is available with or without cylinders, or carrier. See chart below.
- The plastic carrier is available separately.
| MODEL# |
TORCH HANDLE / CUTTING ATTACHMENT |
REGULATORS
OXYGEN/
ACETYLENE |
CUTTING TIP / WELDING NOZZLE |
TWIN HOSE |
GOGGLE / STRIKER |
PLASTIC CARRIER |
CYLINDERS OXYGEN / ACETYLENE |
| 12-PT |
142T-CV / 142C |
210X-80 / 210Y-15 |
172C-0 / 172W-1 |
HW23-012 |
9-WG6G / 25-300 |
CRT10 |
CY20-540 / CY10-MC |
| 12-PTC |
142T-CV / 142C |
210X-80 / 210Y-15 |
172C-0 / 172W-1 |
HW23-012 |
9-WG6G / 25-300 |
CRT10 |
CY20-540 / CY10-MC |
| 12-PO |
142T-CV / 142C |
210X-80 / 210Y-15 |
172C-0 / 172W-1 |
HW23-012 |
9-WG6G / 25-300 |
|
|
| CRT10 |
Plastic Carrier Only (Red) |
| CRT11W |
Wheel Kit Only (Includes Wheels, Axle & Tube Handle) |
*All Outfits come with Torch End Check Valves.
Acetylene Regulator Inlet supplied as standard is CGA 510.
Acetylene Inlet CGA 300 is also available: to order ad "-3" to the outfit model number (example 4130-3)
|
