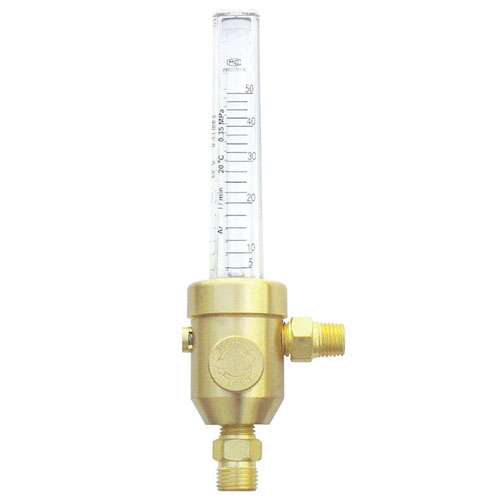

195FM Series Flowmeters

Product Description

Model 195FM Series Flowmeters are designed for accurate regulation of gas flow. Backpressure compensated design insures accurate readings when line restrictions are present.
• Polycarbonate flow tube is square shaped for easy reading..calibrated for both Argon and CO2 gases
• Model 195FM & 195FM-9 are calibrated for 0-60 SCFH Argon flow, 0-60 SCFH CO2 flow
• Calibrated for 50 PSI inlet pressure
• Body machined from class "A" brass bar stock
• Easy adjustment brass knob for "fine-tune" flow settings
• Choice of inlet connections, 1/4" NPT Male or 9/16"-18 RH Female
• Weight: 1lb 2oz
• UL Listed

MODEL #	GAS SERVICE	MAXIMUM INLET PRESET (PSI)	INLET CONNECTION	OUTLET CONNECTION	FLOWMETER FLOW RANGE (SCFH)
195FM	Argon, CO2	50	1/4" NPT(M)	5/8"-18RH(F)	0-60 Ar
195FM-9	Argon, CO2	50	9/16"-18RH(F)	5/8"-18RH(F)	0-60 CO2
