Header extension consists of a gas delivery pipe and header valves. It is expandable for different application requirements.
Features
- Machined with class "A" brass stock.
- Silver brazing on piping joints for maximum leak prevention.
- Maximum working pressure: 3000 psig
- Inlet (Header valve): Fuel Gas - CGA510
Oxygen - CGA540
CO2 - CGA320
Ar,He,N2 - CGA580
Air - CGA590
Breathing Air - CGA346
- Outlet: 1-11 1/2NPS

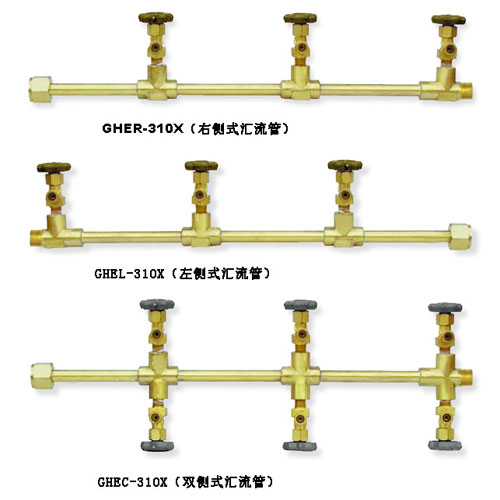

- GHER, GHEL and GHEC series are designed with inlet connection for each cylinder.
