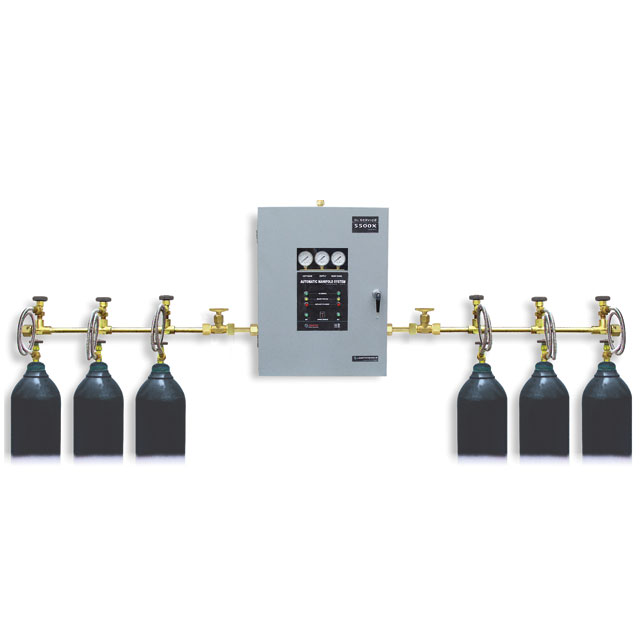

Automatic Manifold Systems
5500 series automatic manifold system is designed to provide an uninteruppted gas supply without any manual adjustments. This system automatically changes over when the primary cylinder bank is depleted. Even in case of power failure, the system continues to supply gas without interruption.
Features
Automatic Changeover System
- Fully enclosed, tamper- resistant metal cabinet.
- Pressure switch control.
- Light indicators provide system status.
- Systems for fuel gas come with an Anti-explosive device.
- Remote alarm panels are available as an option.
- Pressure switch port is available.
Pipeline
- Open-style manifold.
- Silver brazing on piping joints for maximum leak prevention.
- System is designed to accommodate future expanison needs.
- Unique changeover valve provides uninterrupted supply of gas from primary and reserve banks.
- Easy Installation.
- Wall or floor mount are available.
Standard Construction
- 24" flexible high pressure stainless steel braided pigtails with check valve. Rigid copper pigtails are available as an option. Acetylene models equipped with dry flashback arrestor.
- For Acetylene or fuel gas model, manifold outlet is equipped with dry flashback arrestor (FA30PF). As an option, hydraulic flashback arrestors are available for an additional charge.
- Gentec's ultra high flow regulator series 153 & 155L.
- Relief valve at outlet for protecting down-stream piping.
