Single-Side Manifold Systems

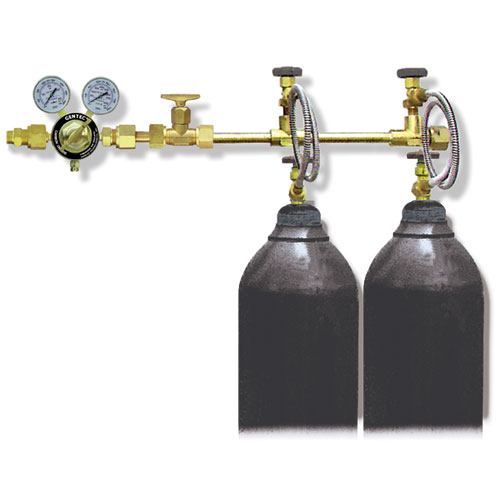

5200 series single-side manifold system is designed for a single source of gas supply from one cylinder bank. Although this system can be used as a main delivery system, it is typically used in industrial and medical applications as a high pressure emergency back-up system for liquid vessel or bulk systems.
Features
- Open-style manifold.
- System can be designed for right or left-hand direction cylinder bank.
- Silver brazing on piping joints for maximum leak prevention.
- System is designed to accomodate future expansion needs.
- Pressure switch port is available.
- Wall or stand mount are available.
Standard Construction
- 24" flexible high pressure stainless steel braided pigtails with check valve. Rigid copper pigtails are available as an option. Pigtails for Acetylene models are equipped with a dry flashback arrestor.
- For Acetylene or fuel gas model, regulator outlet is equipped with a dry flashback arrestor (FA30PF) for additional safety. As an option, hydraulic flashback arrestors are available for an additional charge.
- Gentec's high flow regulator series 155M.
- Relief valve at outlet for protecting downstream piping.
