Semi-Automatic Manifold Systems

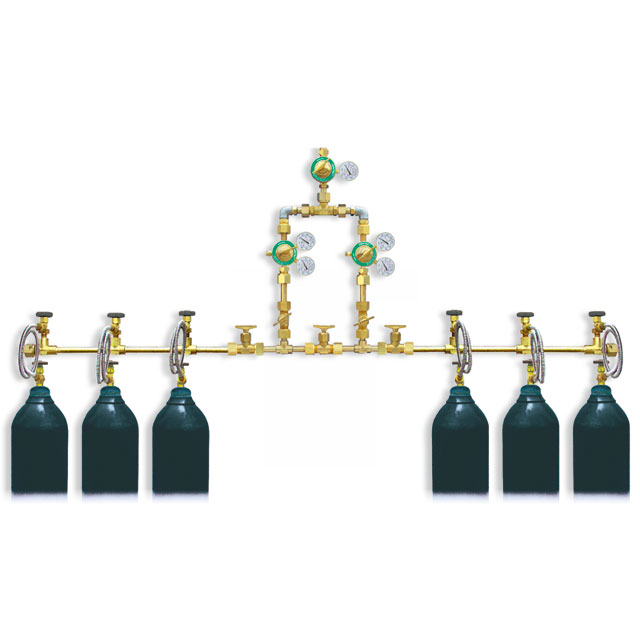

5400 series manifold system is designed to provide an uninterrupted gas supply. It consists of a primary bank and a reserve bank of cylinders. When the primary cylinder bank is depleted, the changeover takes place automatically to provide continuous supply of gas from the reserve bank. Upon changing the cylinders, the regulators on both banks need to be re-adjusted in order for the changeover to occur automatically next time.
Features
- Open-style manifold.
- Secondary regulator for consistant high flow delivery pressure to the pipeline.
- Silver brazing on piping joints for maximum leak prevention.
- System is designed to accommodate future expanison needs.
- Unique changeover valve provides uninterrupted supply of gas from primary and reserve banks.
- Pressure switch port is available.
- Easy installation.
- Wall or stand mount are available.
Standard Construction
- 24" flexible high pressure stainless steel braided pigtails with check valve. Rigid copper pigtails are available as an option. Pigtails for Acetylene models are equipped with dry flashback arrestor.
- For Acetylene or fuel gas model, manifold outlet is equipped with dry flashback arrestor
(FA30PF) for additional safety. As an option, hydraulic flashback arrestors are available
for an additional charge.
- Gentec's ultra high flow regulator series 155L (except for acetylene) & 155M.
- Relief valve at outlet for protecting downstream piping.
