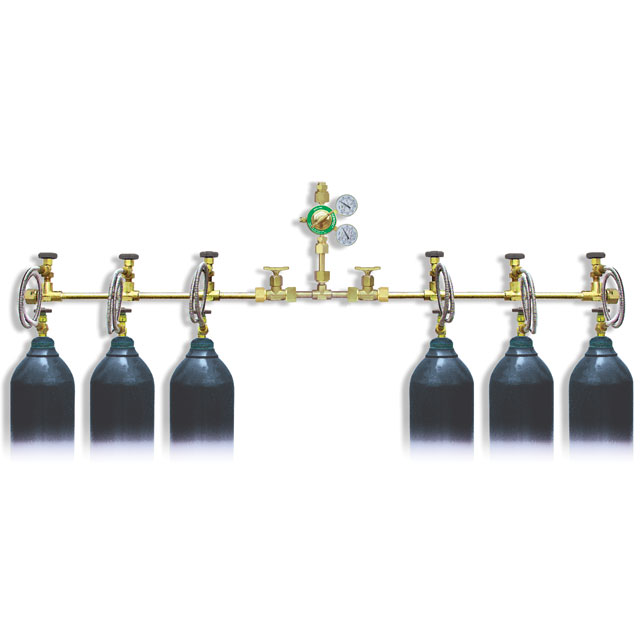

5300 series single manifold system consists of a main gas delivery bank and a reserve bank of cylinders. When the primary cylinder bank is depleted, manually“turn off” the valve on the primary bank and open the valve on the reserve bank to reactivate gas flow. The changeover of this system needs to be operated manually.
Features
- Open-style manifold.
- Silver brazing on piping joints for maximum leak prevention.
- System is designed to accommodate future expanison needs.
- Pressure switch port is available.
- Easy Installation.
- Wall or stand mount are available.
Standard Construction
- 24" flexible high pressure stainless steel braided pigtails with check valve. Rigid copper pigtails are available as an option. Pigtails for Acetylene models are equipped with dry flashback arrestor.
- For Acetylene or fuel gas model, regulator outlet is equipped with dry flashback arrestor
(FA30PF) for additional safety. As an option, hydraulic flashback arrestors are available for an additional charge.
- Gentec's ultra high flow regulator series 155M.
- Relief valve at outlet for protecting downstream piping.
