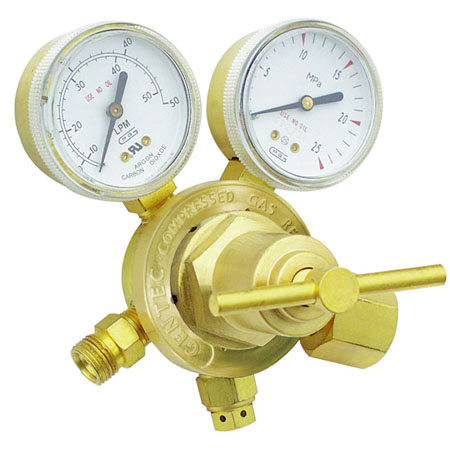

152 Series Flowgauge Regulators
Model 152 Series Flow Gauge Regulators are designed for MIG & TIG applications and provide accurate regulation of gas flow, and reliable performance in commercial, industrial and laboratory applications.
- Accurate measurement of gas flow up to 100 SCFH
- Body and housing cap are machined from class "A" brass bar stock
- Lightweight, rugged construction
- Sintered bronze inlet filter
- Stem type seat assembly for more reliable performance
- Weight: 2 lbs 15 oz
| MODEL # |
GAS SERVICE |
FLOW CAPACITY (SCFH) |
INLET GAUGE |
OUTLET GAUGE |
INLET CONNECTION |
OUTLET CONNECTION |
| 152AR-100 |
Argon
Ar/CO2 |
0-100 |
2", 4000PSI |
2", 100SCFH |
CGA580 |
5/8"-18RHF, 0.32 Orifice |
| 152CD-100 |
Carbon
Dioxide |
0-100 |
2", 4000PSI |
2", 100SCFH |
CGA320 |
5/8"Barb, 0.32 Orifice |
