190 Series Flowgauge Regulators

Product Description

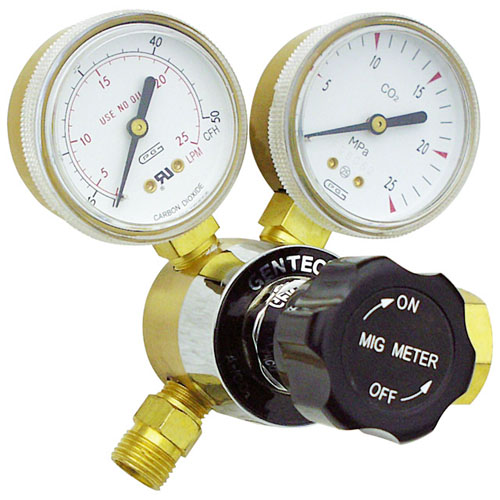

Model 190 Series "MIG METER" Flow Gauge Regulators are designed for MIG & TIG applications and provide accurate regulation of gas flow. Provides reliable performance in commercial, industrial and laboratory applications.
• 2" gauges for easy reading
• Accurate measurement of gas flow up to 50 SCFH
• Body machined from class "A" brass bar stock
• Chrome plated housing cap
• Internal safety pressure relief design
• Plastic adjustment knob for smooth "easy touch" flow settings
• Choice of inlet connections for Argon (CGA 580) or Carbon Dioxide (CGA 320)
• Weight: 2 lbs 3 oz
• UL Listed


MODEL #	GAS SERVICE	FLOW CAPACITY (SCFH)	INLET GAUGE	OUTLET GAUGE	INLET CONNECTION	OUTLET CONNECTION
190AR-50	Argon Ar/CO2	0-50	2", 4000PSI	2", 50SCFH	CGA580	5/8"-18RHF, 0.32 Orifice
190AR-50-B	Argon Ar/CO2	0-50	2", 4000PSI	2", 50SCFH	CGA580	3/16"Barb, 0.32 Orifice
190AR-50-P	Argon Ar/CO2	0-50	2", 4000PSI	2", 50SCFH	CGA580	5/32" Push-In-Tube, 0.32 Orifice
190CD-45	Carbon Dioxide	0-50	2", 4000PSI	2", 50SCFH	CGA320	5/8"-18RHF, 0.32 Orifice
