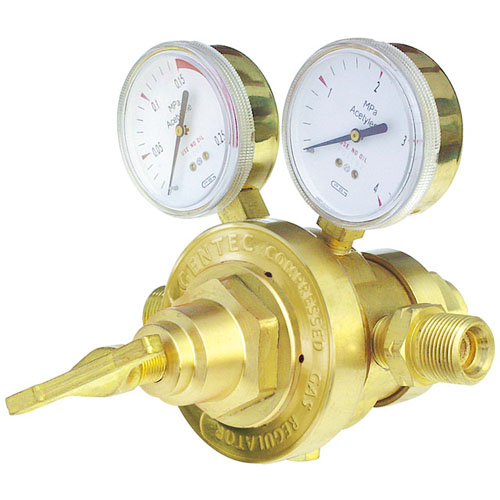

155TM Series Manifold Regulators

Product Description

Model 155TM Series Manifold Regulators are specially designed for manifold systems. They are ideal for use with extra heavy flow gas distribution systems.
• Two stage construction
• Body and housing cap are machined from class "A" brass bar stock
• Delrin cap bushing for smooth adjustments
• Sintered bronze inlet filter
• 2-1/2" gauges for easy reading
• 2" & 3-1/4" diaphragms
• Conforms to CGA E-4 Standard for Gas Pressure Regulators

MODEL #	GAS SERVICE	MAXIMUM INLET PRESSURE (PSI)	MAXIMUM DELIVERY PRESSURE (PSI)	INLET GAUGE	OUTLET GAUGE	INLET CONNECTION	OUTLET CONNECTION
155TMIN-125	Oxygen, Inert Gas, Air	3000	5-125	2-1/2", 4000PSI	2-1/2", 200PSI	1"-11 1/2NPS RH(M)	1"-11 1/2NPS RH(F)
155TMIN-200	Oxygen, Inert Gas, Air	3000	10-200	2-1/2", 4000PSI	2-1/2", 400PSI	1"-11 1/2NPS RH(M)	1"-11 1/2NPS RH(F)
155TMY-15	Acetylene	400	2-15	2-1/2", 400PSI	2-1/2", 30PSI, RL	1"-11 1/2NPS LH(M)	1"-11 1/2NPS LH(F)

1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar
