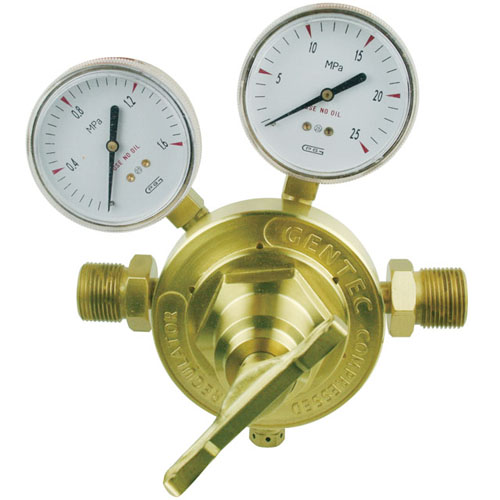

153M Series Manfold Regulators
Model 153M Series Manifold Regulators are specially designed for manifold systems. They are ideal for use with heavy flow gas distribution systems.
- Single stage construction
- Body and housing cap are machined from class "A" brass bar stock
- Delrin cap bushing for smooth adjustments
- Sintered bronze inlet filter
- 2-1/2" gauges for easy reading
- 3-1/4" diaphragm
- Conforms to CGA E-4 Standard for Gas Pressure Regulators
| MODEL # |
GAS SERVICE |
MAXIMUM INLET PRESSURE (PSI) |
MAXIMUM DELIVERY PRESSURE (PSI) |
INLET GAUGE |
OUTLET GAUGE |
INLET CONNECTION |
OUTLET CONNECTION |
| 153MF-125 |
L.P.Gas |
400 |
5-125 |
2-1/2", 400PSI |
2-1/2", 200PSI |
1"-11 1/2NPS LH(M) |
1"-11 1/2NPS LH(F) |
| 153MX-200 |
Oxygen, Inert Gas, Air |
3000 |
10-200 |
2-1/2", 4000PSI |
2-1/2", 400PSI |
1"-11 1/2NPS RH(M) |
1"-11 1/2NPS RH(F) |
| 153MY-15 |
Acetylene |
400 |
2-15 |
2-1/2", 400PSI |
2-1/2", 30PSI, RL |
1"-11 1/2NPS LH(M) |
1"-11 1/2NPS LH(F) |
| 153MIN-125 |
Inert Gas |
3000 |
5-125 |
2-1/2", 4000PSI |
2-1/2", 200PSI |
1"-11 1/2NPS RH(M) |
1"-11 1/2NPS RH(F) |
1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
