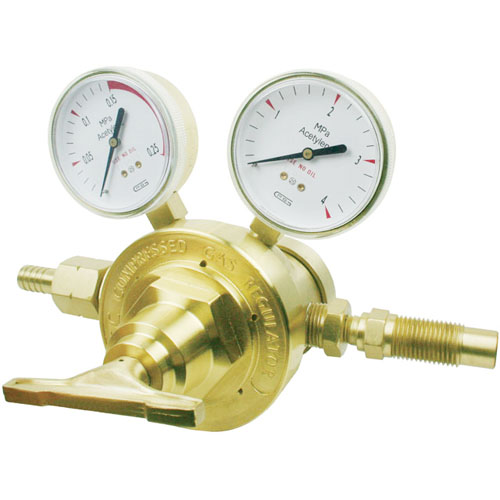

155T Series Two Stage Extra Heavy Duty Regulators

Product Description

155T Series Two Stage Regulators - Model 155T Series Compressed Gas Regulators are two stage extra heavy duty models designed for heavy duty applications where precise and constant outlet pressures are required. Ideal for laboratory testing and manifold installations and many other industrial applications.
• Two stage construction
• Body and housing cap are machined from class "A" brass bar stock
• Delrin cap bushing for smooth adjustments
• Self re-seating external safety pressure relief valve
• Sintered bronze inlet filter
• 2-1/2" gauges for easy reading
• 2" and 3-1/4" diaphragms
• Weight: 8 lbs 8 oz
• Conforms to CGA E-4 Standard for Gas Pressure Regulators

MODEL #	GAS SERVICE	MAXIMUM INLET PRESSURE (PSI)	MAXIMUM DELIVERY PRESSURE (PSI)	INLET GAUGE	OUTLET GAUGE	INLET CONNECTION	OUTLET CONNECTION
155TF-125	L.P. Gas	400	5-125	2-1/2", 400PSI	2-1/2", 200PSI	CGA 510	7/8"-14LH(M)
155TX-125	Oxygen	3000	5-125	2-1/2", 4000PSI	2-1/2", 200PSI	CGA 540	7/8"-14RH(M)
155TX-200	Oxygen	3000	10-200	2-1/2", 4000PSI	2-1/2", 400PSI	CGA 540	7/8"-14RH(M)
155TY-15	Acetylene	400	2-15	2-1/2", 400PSI	2-1/2", 30PSI, RL	CGA 510	7/8"-14LH(M)
155TY-15-3	Acetylene	400	2-15	2-1/2", 400PSI	2-1/2", 200PSI	CGA 300	7/8"-14LH(M)
155TIN-125	Inert Gas (Ar, He, N2)	3000	5-125	2-1/2", 4000PSI	2-1/2", 200PSI	CGA 580	7/8"-14RHM)
155TIN-200	Inert Gas (Ar, He, N2)	3000	10-200	2-1/2", 4000PSI	2-1/2", 400PSI	CGA 580	7/8"-14RH(M)
155TQ-125	Air	3000	5-125	2-1/2", 4000PSI	2-1/2", 200PSI	CGA 590	7/8"-14RH(M)
155TQ-200	Air	3000	10-200	2-1/2", 4000PSI	2-1/2", 400PSI	CGA 346	7/8"-14RH(M)

1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
