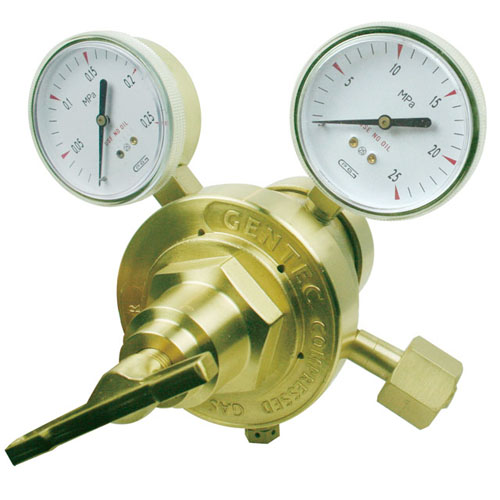

153T Series Two Stage Heavy Duty Regulators

Product Description

153T Series

Body and housing cap are machined from class "A" brass bar stock
Delrin cap bushing for smooth adjustments
Self re-seating external safety pressure relief valve
Sintered bronze inlet filter
Stem type seat assembly for more reliable seating
2-1/2" gauges for easy reading
2" and 3-1/4" Diaphragms
Weight: 7 lbs 6 oz
Conforms to CGA E-4 Standard for Gas Pressure Regulators

MODEL #	GAS SERVICE	MAXIMUM INLET PRESSURE (PSI)	MAXIMUM DELIVERY PRESSURE (PSI)	INLET GAUGE	OUTLET GAUGE	INLET CONNECTION	OUTLET CONNECTION
153TF-125	L.P. Gas	400	5-125	2-1/2", 400PSI	2-1/2", 200PSI	CGA 510	9/16"-18LH(M)
153TX-125	Oxygen	3000	5-125	2-1/2", 4000PSI	2-1/2", 200PSI	CGA 540	9/16"-18RH(M)
153TX-250	Oxygen	3000	10-250	2-1/2", 4000PSI	2-1/2", 400PSI	CGA 540	9/16"-18RH(M)
153TY-15	Acetylene	400	2-15	2-1/2", 400PSI	2-1/2", 30PSI, RL	CGA 510	9/16"-18LH(M)
153TY-15-3	Acetylene	400	2-15	2-1/2", 400PSI	2-1/2", 30PSI, RL	CGA 300	9/16"-18LH(M)
153TIN-125	Inert Gas (Ar, He, N2)	3000	5-125	2-1/2", 4000PSI	2-1/2", 200PSI	CGA 580	5/8"-18RH(F)
153TIN-250	Inert Gas (Ar, He, N2)	3000	10-250	2-1/2", 4000PSI	2-1/2", 400PSI	CGA 580	5/8"-18RH(F)
153TQ-125	Air	3000	5-125	2-1/2", 4000PSI	2-1/2", 200PSI	CGA 590	5/8"-18LH(F)
153TQ-200	Air	3000	10-200	2-1/2", 4000PSI	2-1/2", 400PSI	CGA 346	9/16"-18RH(M)
153TC-125	Carbon Dioxide	3000	5-125	2-1/2", 4000PSI	2-1/2", 200PSI	CGA 320	5/8"-18RH(F)
153TC-200	Carbon Dioxide	3000	10-200	2-1/2", 4000PSI	2-1/2", 400PSI	CGA 320	5/8"-18RH(F)

1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
153T Series Two Stage Regulators - Designed for heavy duty gas welding, cutting and heating applications, these two-stage regulators provide precise and constant delivery over a wide range of inlet pressures. Ideal for laboratory, welding, cutting and many other applications.

Body and housing cap are machined from class "A" brass bar stock
Delrin cap bushing for smooth adjustments
Self re-seating external safety pressure relief valve
Sintered bronze inlet filter
Stem type seat assembly for more reliable seating
2-1/2" gauges for easy reading
2" and 3-1/4" Diaphragms
Weight: 7 lbs 6 oz
Conforms to CGA E-4 Standard for Gas Pressure Regulators

MODEL # GAS SERVICE MAXIMUM INLET PRESSURE (PSI) MAXIMUM DELIVERY PRESSURE (PSI) INLET GAUGE OUTLET GAUGE INLET CONNECTION OUTLET CONNECTION

153TF-125 L.P. Gas 400 5-125 2-1/2", 400PSI 2-1/2", 200PSI CGA 510 9/16"-18LH(M)

153TX-125 Oxygen 3000 5-125 2-1/2", 4000PSI 2-1/2", 200PSI CGA 540 9/16"-18RH(M)

153TX-250 Oxygen 3000 10-250 2-1/2", 4000PSI 2-1/2", 400PSI CGA 540 9/16"-18RH(M)

153TY-15 Acetylene 400 2-15 2-1/2", 400PSI 2-1/2", 30PSI, RL CGA 510 9/16"-18LH(M)

153TY-15-3 Acetylene 400 2-15 2-1/2", 400PSI 2-1/2", 30PSI, RL CGA 300 9/16"-18LH(M)

153TIN-125 Inert Gas
(Ar, He, N2) 3000 5-125 2-1/2", 4000PSI 2-1/2", 200PSI CGA 580 5/8"-18RH(F)

153TIN-250 Inert Gas
(Ar, He, N2) 3000 10-250 2-1/2", 4000PSI 2-1/2", 400PSI CGA 580 5/8"-18RH(F)

153TQ-125 Air 3000 5-125 2-1/2", 4000PSI 2-1/2", 200PSI CGA 590 5/8"-18LH(F)

153TQ-200 Air 3000 10-200 2-1/2", 4000PSI 2-1/2", 400PSI CGA 346 9/16"-18RH(M)

153TC-125 Carbon Dioxide 3000 5-125 2-1/2", 4000PSI 2-1/2", 200PSI CGA 320 5/8"-18RH(F)

153TC-200 Carbon Dioxide 3000 10-200 2-1/2", 4000PSI 2-1/2", 400PSI CGA 320 5/8"-18RH(F)

1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
