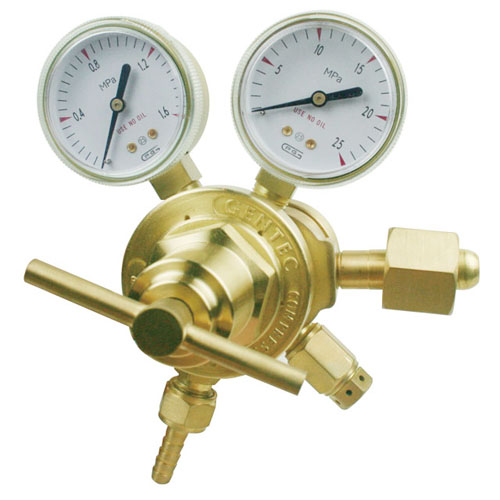

152T Series Two Stage Medium Duty Regulators
152T Series Two Stage Regulators - Designed for medium duty gas welding, cutting and heating applications, these two-stage regulators provide precise and constant delivery over a wide range of inlet pressures. Ideal for laboratory, welding, cutting and many other applications.
- Body and housing cap are machined from class "A" brass bar stock
- Delrin cap bushing for smooth adjustments
- Self re-seating external safety pressure relief valve
- Sintered bronze inlet filter
- Stem type seat assembly for more reliable performance
- 2" gauges for easy reading
- 1-1/4" & 2" diaphragms
- Weight: 4 lbs 10 oz
- Conforms to CGA E-4 Standard for Gas Pressure Regulators
| MODEL # |
GAS SERVICE |
MAXIMUM INLET PRESSURE (PSI) |
MAXIMUM DELIVERY PRESSURE (PSI) |
INLET GAUGE |
OUTLET GAUGE |
INLET CONNECTION |
OUTLET CONNECTION |
| 152TF-80 |
L.P. Gas |
400 |
4-80 |
2", 400PSI |
2", 100PSI |
CGA 510 |
9/16"-18LH(M) |
| 152TX-80 |
Oxygen |
3000 |
4-80 |
2", 4000PSI |
2", 100PSI |
CGA 540 |
9/16"-18RH(M) |
| 152TY-15 |
Acetylene |
400 |
2-15 |
2", 400PSI |
2", 30PSI, RL |
CGA 510 |
9/16"-18LH(M) |
| 152TY-15-3 |
Acetylene |
400 |
2-15 |
2", 400PSI |
2", 30PSI, RL |
CGA 300 |
9/16"-18LH(M) |
| 152TIN-125 |
Inert Gas
(Ar, He, N2) |
3000 |
5-125 |
2", 4000PSI |
2", 200PSI |
CGA 580 |
9/16"-18RH(F) |
| 152TQ-125 |
Air |
3000 |
5-125 |
2", 4000PSI |
2", 200PSI |
CGA 346 |
9/16"-18RH(M) |
1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
