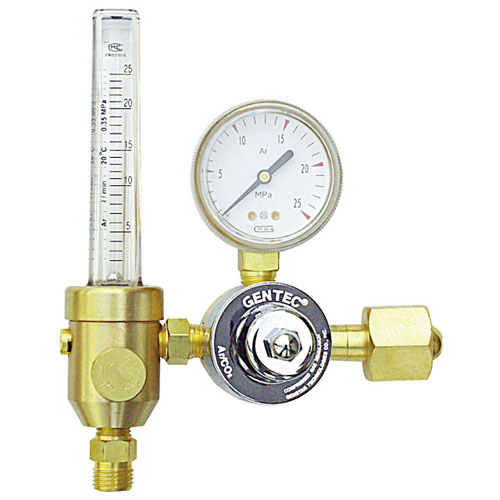

195 & 195T Series Flowmeter Regulators

Product Description

Model 195 Series "MIG MASTER" Flowmeter Regulators are designed for MIG & TIG applications and provide accurate regulation of gas flow. Provides reliable performance in commercial, industrial and laboratory applications.
• 195 Series has single stage construction and 195T Series has two stage construction
• 0 - 60 SCFH Argon (Ar) flow, 0-150 SCFH Helium flow, 0 - 60 SCFH Carbon Dioxide (CO2) flow
• Polycarbonate flow tube and outer cover are impact resistant for maximum durability and service life
• Calibrated for Argon, Helium and Carbon Dioxide gases
• Flowmeter is backpressure compensated to ensure accurate readings when line restrictions are present
• 2" high-pressure gauge for easy reading
• Body machined from class "A" brass bar stock
• Chrome plated housing cap
• Internal safety pressure relief design
• Sintered bronze inlet filter
• Weight: 2 lbs 15 oz
• UL Listed

MODEL #	GAS SERVICE	OUTLET PRESSURE PRESET (PSI)	INLET GAUGE	FLOWMETER (SCFH)	INLET CONNECTION	OUTLET CONNECTION
195AR-60	Argon	50	2", 4000PSI	60	CGA580	5/8"-18RH(F)
195AR-60-680	Argon	50	2", 6000PSI	60	CGA680	5/8"-18RH(F)
195HE-150	Helium	50	2", 4000PSI	150	CGA580	5/8"-18RH(F)
195HE-150-680	Helium	50	2", 6000PSI	150	CGA680	5/8"-18RH(F)
195CD-60	Carbon Dioxide	50	2", 4000PSI	60	CGA320	5/8"-18RH(F)
195TAR-60	Argon	50	2", 4000PSI	60	CGA580	5/8"-18RH(F)
195THE-150	Helium	50	2", 4000PSI	150	CGA580	5/8"-18RH(F)
195TCD-60	Carbon Dioxide	50	2", 4000PSI	60
