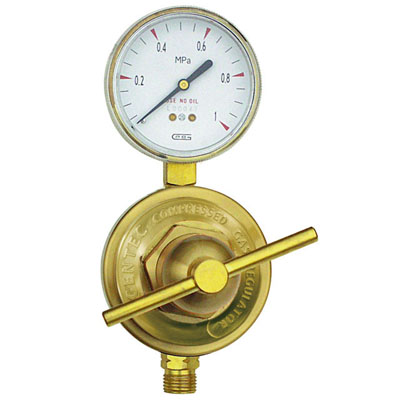

853SR Series Station and Pipeline Regulators
853SR Series Station Regulators - Designed for medium to high flow gas distribution systems in medium to heavy duty flow applications. Maximum inlet pressure of 200 PSIG. Not for use on cylinders.
- Body and housing cap are machined from class "A" brass bar stock
- Single stage construction Rear entry 2-1/2" gauge for easy reading
- Weight: 3 lbs 5 oz
- Conforms to CGA E-4 Standard for Gas Pressure Regulators
| MODEL # |
GAS SERVICE |
MAXIMUM INLET PRESSURE (PSI) |
MAXIMUM DELIVERY PRESSURE (PSI) |
INLET GAUGE |
OUTLET GAUGE |
INLET CONNECTION |
OUTLET CONNECTION |
| 853SRF-80 |
L.P. Gas |
200 |
4-80 |
None |
2-1/2", 100PSI |
7/8"-14LH(F) |
9/16"-18LH(M) |
| 853SRIN-80 |
Inert Gas, CO2 |
200 |
4-80 |
None |
2-1/2", 100PSI |
7/8"-14RH(M) |
5/8"-18RH(F) |
| 853SRIN-125 |
Inert Gas, CO2 |
200 |
5-125 |
None |
2-1/2", 200PSI |
7/8"-14RH(M) |
5/8"-18RH(F) |
| 853SRX-80 |
Oxygen |
200 |
4-80 |
None |
2-1/2", 100PSI |
7/8"-14RH(F) |
9/16"-18RH(M) |
| 853SRX-125 |
Oxygen |
200 |
5-125 |
None |
2-1/2", 200PSI |
7/8"-14RH(F) |
9/16"-18RH(M) |
| 853SRY-15 |
Acetylene |
200 |
2-15 |
None |
2-1/2", 30PSI, RL |
7/8"-14LH(F) |
9/16"-18LH(M) |
1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
