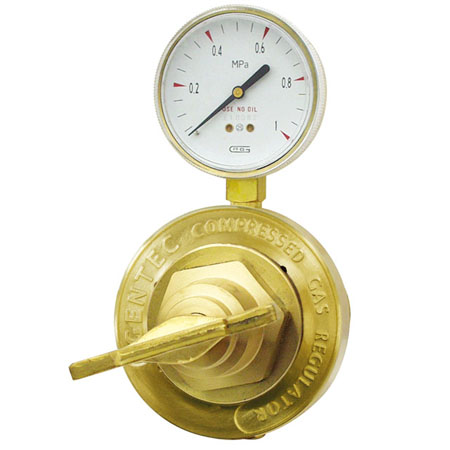

155L Series Station and Pipeline Regulators
Model 155L Series Designed for use with heavy flow gas distribution systems, with a maximum inlet pressure of 350 PSIG. Not for use on cylinders.
- Body and housing cap are machined from class "A" brass bar stock
- Single stage construction
- Stem type seat assembly for more reliable performance
- Delrin cap bushing for smooth adjustments
- 2-1/2" gauge for easy reading
- 3-1/4" diaphragm
- Weight: 5 lbs 2 oz
- Conforms to CGA E-4 Standard for Gas Pressure Regulators
| MODEL # |
GAS SERVICE |
MAXIMUM INLET PRESSURE (PSI) |
MAXIMUM DELIVERY PRESSURE (PSI) |
INLET GAUGE |
OUTLET GAUGE |
INLET CONNECTION |
OUTLET CONNECTION |
| 155LF-125 |
L.P.Gas |
350 |
5-125 |
None |
2-1/2", 200PSI |
3/4"NPT(F) Port |
3/4"NPT(F) Port |
| 155LF-200 |
L.P.Gas |
350 |
10-200 |
None |
2-1/2", 400PSI |
3/4"NPT(F) Port |
3/4"NPT(F) Port |
| 155LX-80 |
Oxygen |
350 |
4-80 |
None |
2-1/2", 100PSI |
3/4"NPT(F) Port |
3/4"NPT(F) Port |
| 155LX-125 |
Oxygen |
350 |
5-125 |
None |
2-1/2", 200PSI |
3/4"NPT(F) Port |
3/4"NPT(F) Port |
| 155LX-200 |
Oxygen |
350 |
10-200 |
None |
2-1/2", 400PSI |
3/4"NPT(F) Port |
3/4"NPT(F) Port |
| 155LY-15 |
Acetylene |
350 |
2-15 |
None |
2-1/2", 30PSI, RL |
3/4"NPT(F) Port |
3/4"NPT(F) Port |
| 155LIN-125 |
Inert Gas, CO2, Air |
350 |
5-125 |
None |
2-1/2", 200PSI |
3/4"NPT(F) Port |
3/4"NPT(F) Port |
| 155LIN-200 |
Inert Gas, CO2, Air |
350 |
10-200 |
None |
2-1/2", 400PSI |
3/4"NPT(F) Port |
3/4"NPT(F) Port |
1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
