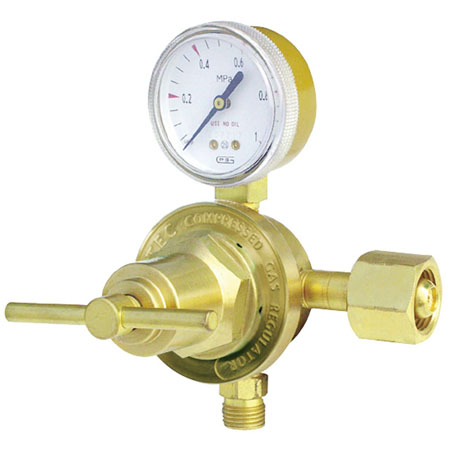

152S Series Station and Pipeline Regulators
152S Series Station Regulators - Designed for use with gas distribution systems with light to medium flow applications. Maximum inlet pressure of 200 PSIG. Not for use on cylinders.
- Body and housing cap are machined from class "A" brass bar stock
- Delrin cap bushing for smooth adjustments
- Single stage construction
- Conforms to CGA E-4 Standard for Gas Pressure Regulators
| MODEL # |
GAS SERVICE |
MAXIMUM INLET PRESSURE (PSI) |
MAXIMUM DELIVERY PRESSURE (PSI) |
INLET GAUGE |
OUTLET GAUGE |
INLET CONNECTION |
OUTLET CONNECTION |
| 152SF-80 |
L.P. Gas |
200 |
4-80 |
None |
2", 100PSI |
7/8"-14LH(F) |
9/16"-18LH(M) |
| 152SF-125 |
L.P. Gas |
200 |
5-125 |
None |
2", 200PSI |
7/8"-14LH(F) |
9/16"-18LH(M) |
| 152SX-40 |
Oxygen |
200 |
2-40 |
None |
2", 60PSI |
7/8"-14RH(F) |
9/16"-18RH(M) |
| 152SX-80 |
Oxygen |
200 |
4-80 |
None |
2", 100PSI |
7/8"-14RH(F) |
9/16"-18RH(M) |
| 152SX-125 |
Oxygen |
200 |
5-125 |
None |
2", 200PSI |
7/8"-14RH(F) |
9/16"-18RH(M) |
| 152SY-15 |
Acetylene |
200 |
2-15 |
None |
2", 30PSI, RL |
7/8"-14LH(F) |
9/16"-18LH(M) |
| 152SIN-40 |
Air, Inert Gas, CO2 |
200 |
2-40 |
None |
2", 60PSI |
7/8"-14RH(M) |
5/8"-18RH(F) |
| 152SIN-80 |
Air, Inert Gas, CO2
|
200 |
4-80 |
None |
2", 100PSI |
7/8"-14RH(M) |
5/8"-18RH(F) |
| 152SIN-125 |
Air, Inert Gas, CO2 |
200 |
5-125 |
None |
2", 200PSI |
7/8"-14RH(M) |
5/8"-18RH(F) |
| 152SIN-40FG |
Air, Inert Gas, CO2 |
200 |
0-40 SCFH |
None |
0-40 SCFH |
7/8"-14RH(M) |
5/8"-18RH(F) |
1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
