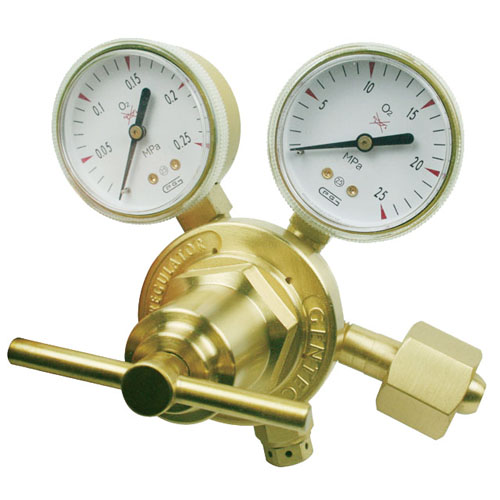

152 Series Single Stage, Medium Duty Regulators
152 Series Designed for medium duty gas welding, cutting and heating applications, these regulators are ideal for industrial application, farm repairs and laboratory testing, etc.
- Body and housing cap are machined from class "A" brass bar stock
- Delrin cap bushing for smooth adjustments
- Self re-seating external safety pressure relief valve on oxygen, inert gas and air models
- Sintered bronze inlet filter
- Stem type seat assembly for more reliable performance
- 2" gauges for easy reading
- 2" diaphragm
- Weight: 2 lbs 11 oz
- UL Listed
| MODEL # |
GAS SERVICE |
MAXIMUM INLET PRESSURE (PSI) |
MAXIMUM DELIVERY PRESSURE (PSI) |
INLET GAUGE |
OUTLET GAUGE |
INLET CONNECTION |
OUTLET CONNECTION |
| 152F-80 |
L.P. Gas |
400 |
4-80 |
2", 400PSI |
2", 100PSI |
CGA 510 |
9/16"-18LH(M) |
| 152X-80 |
Oxygen |
3000 |
4-80 |
2", 4000PSI |
2", 100PSI |
CGA 540 |
9/16"-18RH(M) |
| 152Y-15 |
Acetylene |
400 |
2-15 |
2", 400PSI |
2", 30PSI, RL |
CGA 510 |
9/16"-18LH(M) |
| 152Y-15-3 |
Acetylene |
400 |
2-15 |
2", 400PSI |
2", 30PSI, RL |
CGA 300 |
9/16"-18LH(M) |
| 152Y-15-5 |
Acetylene |
400 |
2-15 |
2", 400PSI |
2", 30PSI, RL |
CGA 520 |
9/16"-18LH(M) |
| 152IN-125 |
Inert Gas
(Ar, He, N2) |
3000 |
5-125 |
2", 4000PSI |
2", 200PSI |
CGA 580 |
5/8"-18RH(F) |
| 152Q-125 |
Air |
3000 |
5-125 |
2", 4000PSI |
2", 200PSI |
CGA 346 |
5/8"-18RH(M) |
1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
