198CD Electrically Heated Regulator/Flowmeter for
Product Description

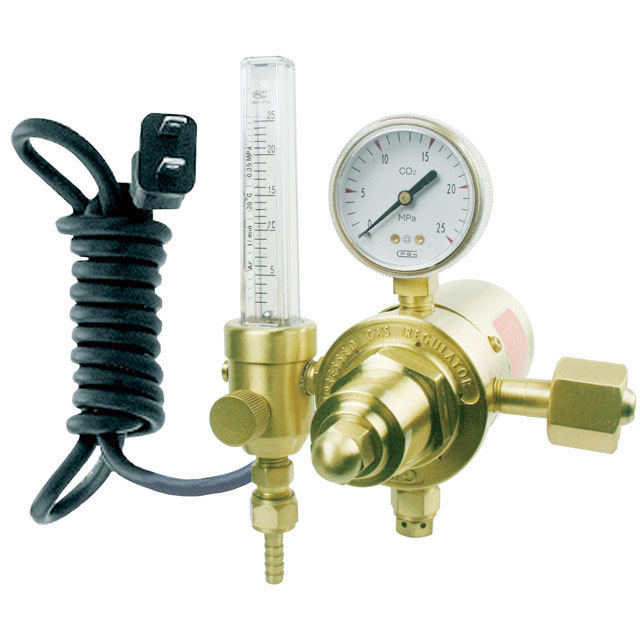

Model 198CD
Electrically Heated Regulator Flowmeter for CO2 is designed for applications requiring extremely high gas flow rates.
Built-in, thermostatically-controlled, electric heater keeps the CO2 warm, allowing for a continuous duty cycle without freezing
110VAC / 190W heater is standard
Voltage output will vary in some locations, so please specify your voltage requirements when ordering
0 - 60 SCFH Flowmeter is backpressure compensated to ensure accurate reading when line restrictions are present
Forged brass body and housing cap Sintered bronze inlet filter
Weight: 4lbs 11oz
CAUTION:
Use this regulator only with non-siphoned standard CO2 cylinders.
MODEL #
GAS SERVICE
MAXIMUM DELIVERY PRESSURE (PSI)
INLET GAUGE
FLOWMETER (SCFH)
INLET CONNECTION
OUTLET CONNECTION
198CD-60
Carbon Dioxide
50 (Preset)
2", 4000PSI
60
