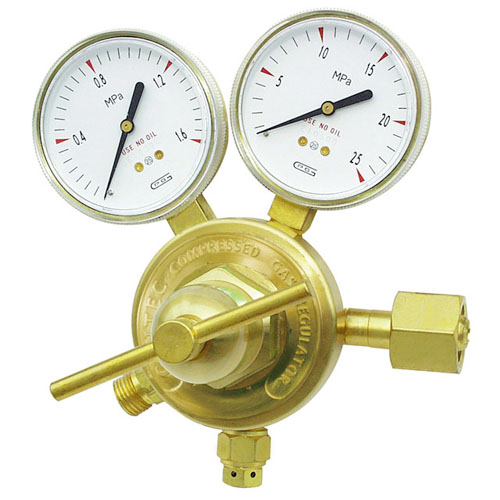

853 Series Medium to Heavy Duty Regulators

Product Description

Designed for medium to heavy duty gas welding, cutting and heating applications, these single stage regulators provide top performance in a wide variety of industrial and laboratory applications.
• Body and housing cap are machined from class "A" brass bar stock
• Self re-seating external safety pressure relief valve on oxygen models
• Stem type seat assembly for more reliable performance
• 2-112" gauges for easy reading
• 2-314 diaphragm
• Weight: 3 lbs 8 oz
• Conforms to CGA E-4 standard for gas pressure regulators

MODEL #	GAS SERVICE	MAXIMUM INLET PRESSURE (PSI)	MAXIMUM DELIVERY PRESSURE (PSI)	INLET GAUGE	OUTLET GAUGE	INLET CONNECTION	OUTLET CONNECTION
853F-80	L.P.Gas	400	4-80	2-1/2", 400PSI	2-1/2", 100PSI	CGA510	9/16"-18LH(M)
853X-125	Oxygen	3000	5-125	2-1/2", 4000PSI	2-1/2", 200PSI	CGA540	9/16"-18RH(M)
853Y-15	Acetylene	400	2-15	2-1/2", 400PSI	2-1/2", 30PSI, RL	CGA510	9/16"-18LH(M)
853Y-15-3	Acetylene	400	2-15	2-1/2", 400PSI	2-1/2", 30PSI, RL
