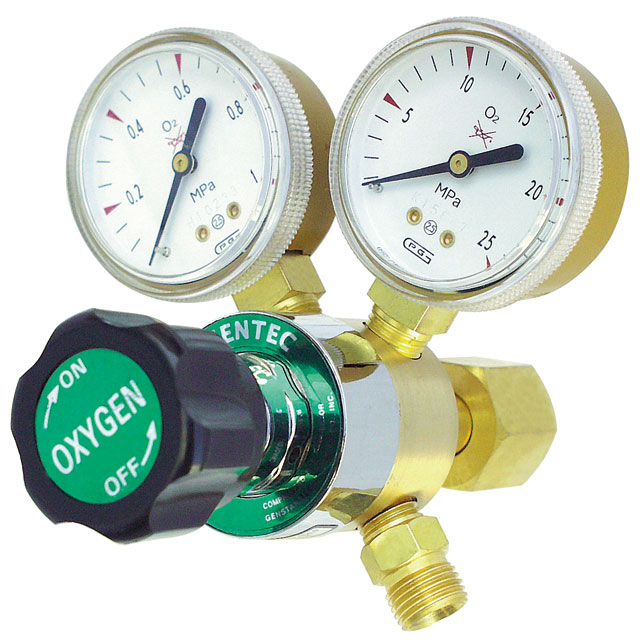

210 Series Light Duty Regulators
Featuring a compact rear entry design to meet the demands of special installation, these regulators are best for light to medium duty gas welding, cutting and heating applications, such as industrial maintenance, farm and shop repair, hobby, crafts and home care.
- Rear entry inlet construction
- Body is machined from class "A" brass bar stock
- Chrome-plated housing cap
- Internal safety pressure relief valve
- Sintered bronze inlet filter
- Stem type seat assembly for more reliable seating
- Plastic adjustment knob for smooth "easy touch" pressure setting
- 2" gauges for easy reading
- 1-1/4" diaphragm
- Weight: 2 lbs 3 oz
- UL Listed
| MODEL # |
GAS SERVICE |
MAXIMUM INLET PRESSURE (PSI) |
MAXIMUM DELIVERY PRESSURE (PSI) |
INLET GAUGE |
OUTLET GAUGE |
INLET CONNECTION |
OUTLET CONNECTION |
| 210X-80 |
Oxygen |
3000 |
4-80 |
2", 4000PSI |
2", 100PSI |
CGA540 Rear |
9/16"-18RH(M) |
| 210X-80-A |
Oxygen |
3000 |
4-80 |
2", 4000PSI |
2", 100PSI |
CGA540 Rear |
3/8"-24RH(M) |
| 210Y-15 |
Acetylene |
400 |
2-15 |
2", 400PSI |
2", 30PSI, RL |
CGA200 "MC" Rear |
9/16"-18LH(M) |
| 210Y-15-A |
Acetylene |
400 |
2-15 |
2", 400PSI |
2", 30PSI, RL |
CGA200 "MC" Rear |
3/8"-24LH(M) |
1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
