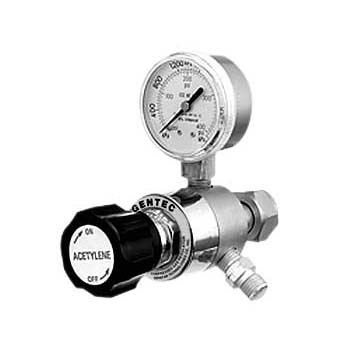

Featuring a compact rear entry design, these regulators are designed for light to medium duty gas welding and brazing applications.
- Rear entry inlet construction
- 2" low pressure gauge
- Stem type seat assembly for more reliable seating
- Body machined from class "A" brass bar stock
- Chrome plated housing cap
- Internal Safety Pressure Relief design
- Plastic adjustment knob for smooth "easy touch" pressure settings
- Sintered bronze inlet filter
- Weight: 1 lb 14 oz
- UL Listed
MODEL #
|
GAS SERVICE |
MAXIMUM INLET PRESSURE (PSI) |
MAXIMUM DELIVERY PRESSURE (PSI) |
INLET GAUGE |
OUTLET GAUGE |
INLET CONNECTION |
OUTLET CONNECTION |
210Y1-15-B
|
Acetylene |
400 |
2-15 |
2", 400PSI |
None |
CGA520 "B" Rear |
9/16"-18LH(M) |
210Y1-15-M
|
Acetylene |
400 |
2-15 |
2", 400PSI |
None |
CGA200 "MC" Rear |
3/8"-24LH(M) |
1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
1 SCFH = 0.0283 m3/h = 0.472 LPM
