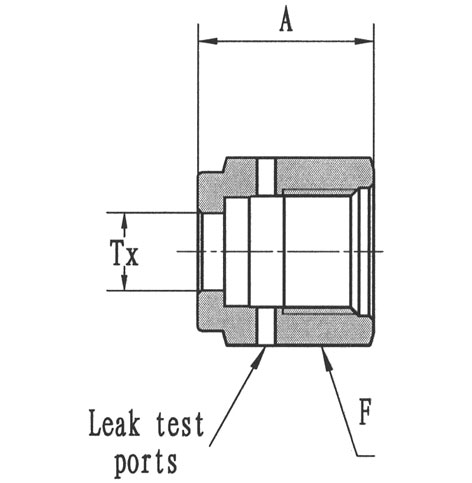

| Female Nut |
|
FSR Size |
Ordering Number |
F Hex Flat |
A |
Tx |
|
1/4" |
SS-VN-FSR4 |
3/4 | 0.81 | 0.36 |
|
1/2" |
SS-VN-FSR8 | 1-1/16 | 0.88 | 0.61 |
| 3/4" | SS-VN-FSR12 | 1-1/2 | 1.12 | 0.89 |
| Male Nut |
|
FSR Size |
Ordering Number |
E |
A |
Tx |
|
1/4" |
SS-VMN-FSR4 |
5/8 | 0.71 | 0.36 |
|
1/2" |
SS-VMN-FSR8 | 15/16 | 0.81 | 0.61 |
| 3/4" | SS-VMN-FSR12 | 1-5/16 | 1.00 | 0.89 |
| Cap |
|
FSR Size |
Ordering Number |
B |
F Hex Flat |
A |
|
1/4" |
SS-VCP-FSR4 |
0.44 | 3/4 | 0.94 |
|
1/2" |
SS-VCP-FSR8 | 0.45 | 1-1/16 | 1.01 |
| 3/4" | SS-VCP-FSR12 | 0.54 | 1-1/2 | 1.29 |
| Plug |
|
FSR Size |
Ordering Number |
F Hex Flat |
A |
|
1/4" |
SS-VP-FSR4 |
5/8 | 0.92 |
|
1/2" |
SS-VP-FSR8 | 15/16 | 1.08 |
| 3/4" | SS-VP-FSR12 | 1-5/16 | 1.43 |
