Product Description

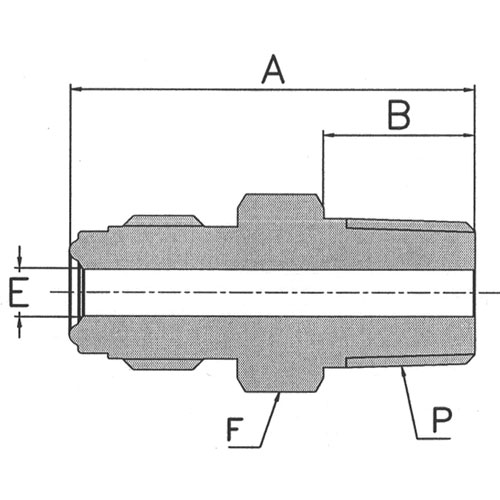

Male NPT Connector

FSR Size P Male NPT Size Ordering Number B E F Hex Flat A Working Pressure(psig) 1/4" 1/4" SS-VMC-VM4-NT4 0.56 0.18 5/8 1.49 8000 1/2" 1/2" SS-VMC-VM8-NT8 0.75 0.40 15/16 1.84 3500 3/4" 3/4" SS-VMC-VM12-NT12 0.75 0.62 1-5/16 2.19 3000

Double Male Union

FSR Size Ordering Number E F Hex Flat A Working Pressure(psig) 1/4" SS-VU-VM4 0.18 5/8 1.55 8000 1/2" SS-VU-VM8 0.40 15/16 1.84 3500 3/4" SS-VU-VM12 0.62 1-5/16 2.44 3000

Bulkhead Union

FSR Size Ordering Number B E F Hex Flat A Panel Hole Size Max. Panel Thickness Working Pressure (psig) 1/4" SS-VBU-VM4 1.30 0.18 3/4 2.23 19/32 0.44 8000 1/2" SS-VBU-VM8 1.48 0.40 1-1/16 2.57 29/32 0.50 3500

FSR to Male NPT Elbow

FSR Size P Male NPT Size Ordering Number C B D E F Wrench Flat Working Pressure(psig) 1/4" 1/4" SS-VWE-VM8-NT4 1.07 1.05 0.56 0.18 1/2 8000 1/2" 1/2" SS-VWE-VM8-NT8 1.45 1.45 0.75 0.40 13/16 3500

Union Elbow

FSR Size Ordering Number C E F Wrench Flat Working Pressure(psig) 1/4" SS-VUE-VM4 1.07 0.18 1/2 8000 1/2" SS-VUE-VM8 1.45 0.40 13/16 3500 3/4" SS-VUE-VM12 1.92 0.62 1-1/4 3000

Union Tee

FSR Size Ordering Number C E A F Wrench Flat Working Pressure(psig) 1/4" SS-VUT-VM4 1.07 0.18 2.14 1/2 8000 1/2" SS-VUT-VM8 1.45 0.40 2.90 13/16 3500 3/4" SS-VUT-VM12 1.92 0.62 3.84 1-1/4 3000

Reducing Tee

FSR Size Ordering Number C C1 E E1 A F Wrench Flat Working Pressure(psig) 1/2"x1/4"x1/2" SS-VRUT-VM8-4-8 1.45 1.25 0.40 0.18 2.90 13/16 3500 3/4"x1/4"x3/4" SS-VRUT-VM12-4-12 1.92 1.50 0.62 0.18 3.84 1-1/4 3000 3/4"x1/2"x3/4" SS-VRUT-VM12-8-12 1.92 1.68 0.62 0.40 3.84 1-1/4 3000
