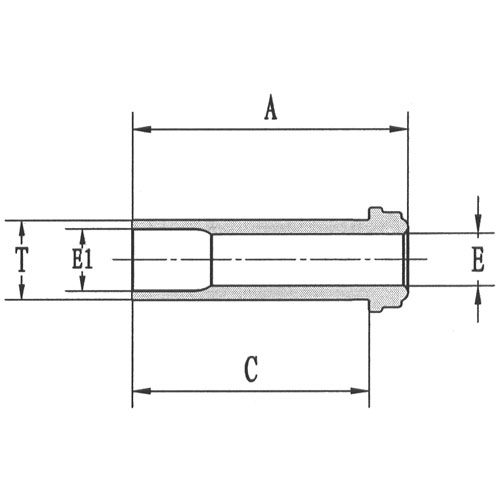

| Glands |
|
FSR Size |
T Tube OD |
Ordering Number |
C |
E |
E1 |
A |
Nominal Wall Thickness |
Working |
|
1/4" |
3/8" |
SL*-HVDS-FSR4-T6L2 |
0.41 | 0.25 | 0.31 | 0.60 | 0.035 |
3300 |
|
1/4" |
3/8" |
SL*-HVDS-FSR4-T6L7 |
1.12 | 0.25 | 0.31 | 1.31 | 0.035 |
3300 |
| Union Elbow |
|
FSR Size |
Ordering Number |
C |
E |
F Wrench Flat |
Working |
|
1/4" |
SS-HVUE-VM4 |
1.07 | 0.25 | 1/2 | 8000 |
| Union Tee |
|
FSR Size |
Ordering Number |
C |
E |
A |
F Wrench Flat |
Working |
|
1/4" |
SS_HVUT-VM4 |
1.07 | 0.25 | 2.14 | 1/2 | 8000 |
| Female Nut |
.jpg)
|
FSR Size |
Ordering Number |
F Hex Flat |
A |
Tx |
|
1/4" |
SS-HVN-FSR4 |
3/4 | 0.81 | 0.39 |
| Male Nut |
|
FSR Size |
Ordering Number |
F Hex Flat |
A |
Tx |
|
1/4" |
SS-HVMN-FSR4 |
5/8 | 0.71 | 0.39 |
