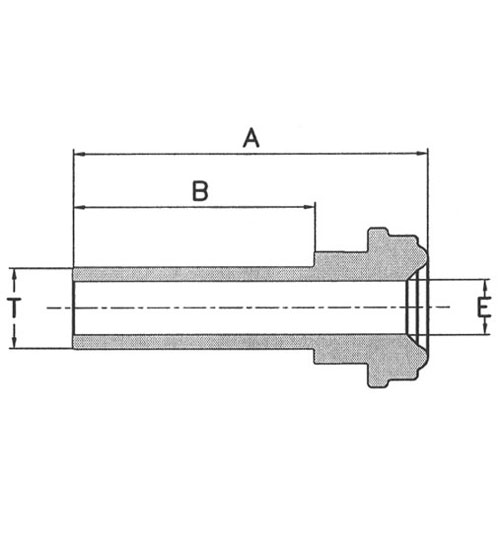

FSR Size |
T
Tube OD |
Ordering Number |
B |
E |
A |
Normal Wall Thickness |
Working Pressure(psig) |
|
1/4" |
1/4" |
SL*-VDS-FSR4-T4L2 |
0.25 |
0.18 |
0.60 |
0.035 |
5100 |
|
1/4" |
1/4" |
SL*-VDS-FSR4-T4L7 |
0.75 |
0.18 |
1.10 |
0.035 |
5100 |
|
1/2" |
3/8" |
SL*-VDS-FSR8-T6L7 |
0.75 |
0.31 |
1.12 |
0.035 |
3300 |
| 1/2" |
1/2" |
SL*-VDS-FSR8-T8L2 |
0.25 |
0.40 |
0.62 |
0.049 |
3500 |
| 1/2" |
1/2" |
SL*-VDS-FSR8-T8L7 |
0.75 |
0.40 |
1.12 |
0.049 |
3500 |
|
